- General Information
- Manufacturer
- TRENDnet
- Manufacturer Website Address
- http://www.trendnet.com
- Brand Name
- TRENDnet
- Product Type
- Ethernet Switch

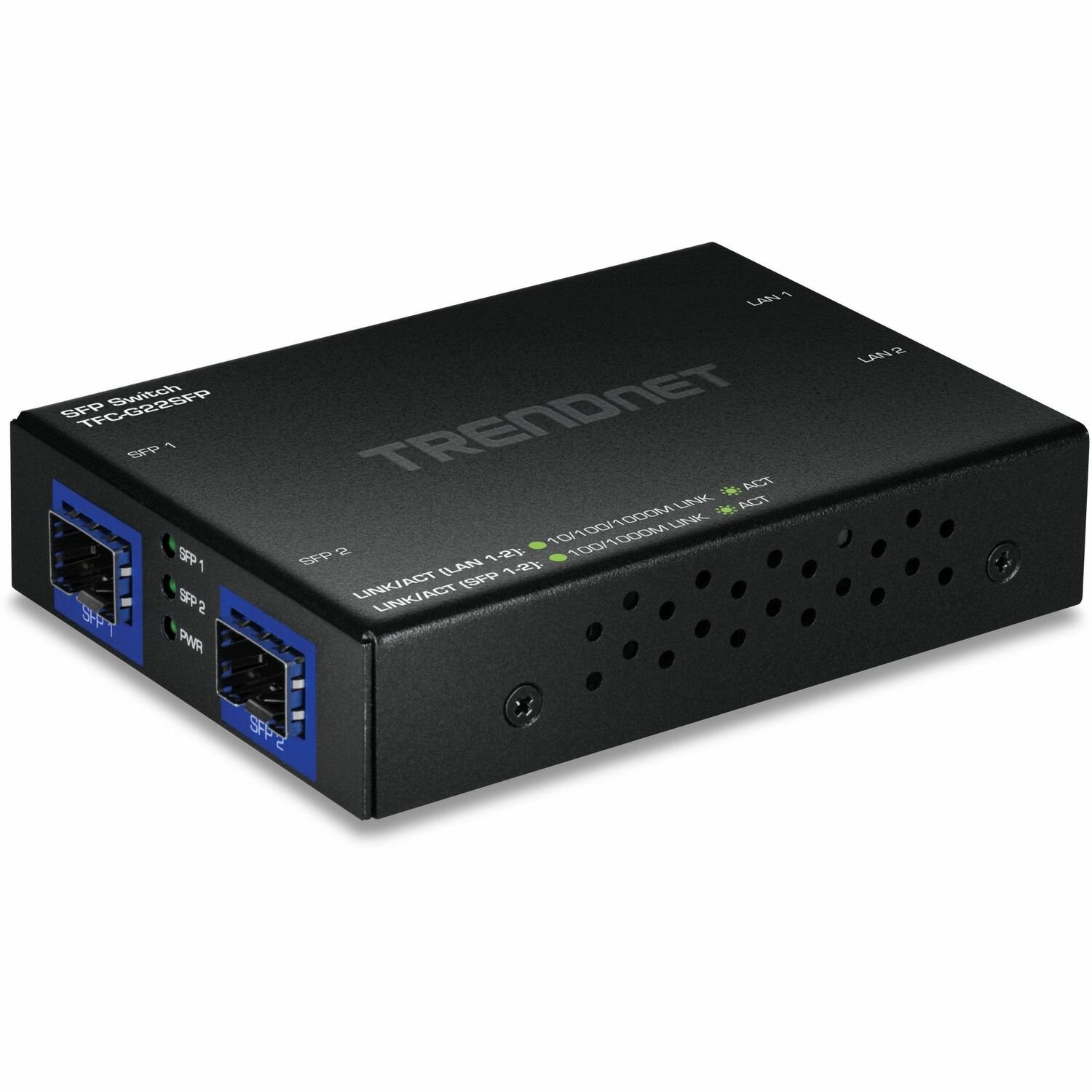

TRENDnet's compact 4-Port Gigabit Switch with SFP Ports, model TFC-G22SFP, provides high-bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 8Gbps with full-duplex mode. This 4-port switch with SFP ports is ideal to network devices at long distances over fiber connection with its two SFP ports. The wall mountable, fanless design provides installation flexibility.
Gigabit Speeds
Gigabit ports provide high-speed network connections to four devices and an 8Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Fiber
Equipped with two SFP ports for long distance fiber networking.
Compact
Compact and lightweight metal housing design provides greater installation flexibility |
FEATURES
Easy Setup
Simply power up the SFP Ethernet switch and plug in connected devices
Gigabit Ports
This 4-port switch with SFP ports is equipped with two gigabit Ethernet ports and two gigabit SFP ports
Switching Capacity
8Gbps switching capacity
Jumbo Frame
Send larger packets, or Jumbo Frames (up to 9KB), for increased performance
Wall Mountable
Features a convenient wall mountable design for greater installation flexibility
Fanless
Fanless design lowers energy consumption and eliminates operating noise
Compact Design
Small, compact, and lightweight metal housing of the gigabit switch provides greater installation flexibility
LED Indicators
LED indicators on this Ethernet switch with fiber ports convey port status
SFP Support
The 4-port switch with SFP ports is compatible with multi-mode and single mode transmissions
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Features
- Fanless
- Interfaces/Ports
- Total Number of Network Ports
- 2
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 2 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port
- 2 x 10/100/1000BASE-X Gigabit Ethernet SFP Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Multi-mode
- Ethernet Technology
- Gigabit Ethernet
- Fast Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate
- 128 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3az
- Reliability
- MTBF
- 770000 Hour
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Adapter
- Power Consumption
- 3.30 W
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- Wall Mountable
- Compact
- Height
- 0.9"
- Width
- 3"
- Length
- 4"
- Weight (Approximate)
- 7.18 oz
- Miscellaneous
- Package Contents
- 4-Port Gigabit Switch with 2 SFP Slots Ports
- Power Adapter
- Application/Usage
- Network
- Office
- Traffic
- Router
- TAA Compliant
- Yes
