- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com/us
- Brand Name
- TP-Link
- Product Line
- Omada
- Product Type
- Ethernet Switch

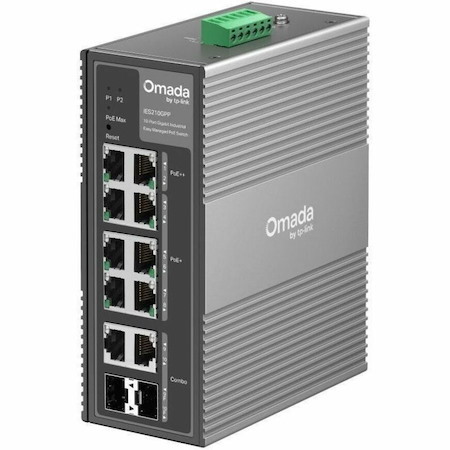

Omada Industrial10-Port Gigabit Easy Managed PoE++Switch
- 10× Gigabit Ports (2× PoE++, 6× PoE+, 2× RJ45/SFP Combo)
- 240W Total PoE Budget
- -40°C to 75°C Operating Temperature
- 12~57VDC 1+1 Redundant Power Input
- Industrial-Grade IP40 Aluminum Casing
- Abundant Functions for CCTV Networking
- Easy Centralized Management
- DIN-Rail & Wall Mounting
Industrial-Grade Protection Built for Harsh Environments
-40°C to 75°C Operating Temperature
6kV Lightning Protection
Industrial-Grade IP40 Aluminum Casing
Enhanced Networking Stability and Security | 1+1 Redundant Power Input
Equipped with dual power input ports and a wide 12-57V DC voltage range, ensuring continuous operation even if one power supply fails.
Real-Time Fault Alarm
Connected to an external alarm, the switch outputs an alarm signal promptly if a port is disconnected or power input is abnormal.
Gigabit PoE++ Ports for Reliable High-PowerDevice Support
2× Gigabit PoE++ RJ45 Ports
6× Gigabit PoE+ RJ45 Ports
Budget up to 60W per PoE++ Port
Total 240W PoE Power
Easy Operation andMaintenance with Omada'sFree Cloud Management
Easy to Use with Plug-and-Play Design and Simple Configuration.
Free and Easy Centralized Cloud Management via Omada Central Essentials
Access Logs and Receive Alert Notifications at Any Time
Easily Configure Surveillance Features Like 24/7 Camera Monitoring & Automatic Recovery
Flexible Deployment Options
DIN-rail
Wall-mount
Diverse Industry Applications
Surveillance
Industrial Automation
Energy
Smart Buildings
- Technical Information
- Features
- IP40
- Remote/Cloud Management
- Plug and Play
- Fanless
- Interfaces/Ports
- Total Number of Network Ports
- 10
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 2 × Gigabit Ethernet PoE++ RJ-45 Network Port
- 6 × Gigabit Ethernet PoE+ RJ-45 Network Port
- 2 × Gigabit Ethernet RJ-45/SFP Combo Port
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate
- 128 MB/s
- I/O Expansions
- Shared SFP Slot
- Yes
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.1p
- IEEE 802.3x
- IEEE 802.1ab
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1Q
- Management & Protocols
- Manageable
- Yes
- Switch Management Type
- Easy Managed
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 240 W
- Input Voltage
- 57 V DC
- 46 V DC
- Power Source
- DC
- Power Supply
- Redundant Power Supply Supported
- Yes
- Plug/Connector Type
- Terminal Block
- Physical Characteristics
- Product Material
- Aluminum
- Form Factor
- DIN Rail Mountable
- Wall Mountable
- Height
- 2.4"
- Width
- 6.1"
- Depth
- 4.7"
- Miscellaneous
- Package Contents
- Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++
- DIN-Rail Mounting Bracket
- Wall-Mounting Plates
- Installation Guide
- Application/Usage
- Industrial
- Network
- CCTV System
- Security
- Camera
- Surveillance
- Traffic
- Automation Industry
- Building
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
