Powerful 24-port and 48-port Gigabit switches with 4 dedicated 10G SFP+ uplinks and Remote/Cloud Management option - Select your new network engine!
As a leading provider of network equipment for businesses, NETGEAR® understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business' needs, whether in the hospitality, catering, education or retail domains.
The Gigabit Ethernet Switches with 4 SFP+ Ports join the NETGEAR Smart switches with Cloud family, adding full 24 and 48 port PoE+ and PoE++ support for organizations that deploy high-density PoE devices and require a powerful interconnect link between access and aggregation.
Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 190W and 420W over 24-port, or 380W and 640W over 48-port providing more headroom. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the 24- port models support quiet rack mounting operation with a maximum of 30.5dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the 52-port models are rated at no more than 37.3dBA. |
Highlights
The NETGEAR Gigabit Ethernet Switches with 4 SFP+ Ports with Remote/Cloud Management provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoEbased VoIP phones, IP cameras, videoover-IP endpoints and Wireless access points simply and securely. Advanced features such as IPv4/IPv6 Layer 3 static routing, LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN Registration and Spanning Tree will satisfy even the most advanced small business networks.
- General Information
- Manufacturer
- Netgear, Inc
 - Manufacturer Website Address
- http://www.netgear.com
 - Brand Name
- Netgear
 - Product Line
- Business
 - Product Type
- Ethernet Switch

- Warranty
- Limited Warranty
- Lifetime

- Technical Information
- Features
- DHCP Snooping
 - Remote/Cloud Management
 - Access Control List
 - Energy Efficient
 - Zero-Touch Provisioning (ZTP)
 - VLAN Segmentation
 - Dynamic ARP Inspection
 - Remote Monitoring (RMON)
 - DHCP Relay

- Interfaces/Ports
- Total Number of Network Ports
- 48
 - Uplink Port
- Yes
 - Network (RJ-45)
- Yes
 - Port/Expansion Slot Details
- 48 x 10/100/ 1000BASE-T Gigabit Ethernet RJ-45 Network Port
 - 4 x 1000/10GBASE-X Gigabit Ethernet SFP+ Expansion Slot

- Media & Performance
- Media Type Supported
- Optical Fiber
 - Twisted Pair
 - Ethernet Technology
- Gigabit Ethernet
 - 10 Gigabit Ethernet
 - Network Technology
- 10GBase-X
 - 10/100/1000Base-T
 - 1000Base-X
 - Maximum Data Transfer Rate
- 1.25 GB/s

- I/O Expansions
- Total Number of Expansion Slots
- 4
 - Expansion Slot Type
- SFP+
 - Number of SFP+ Slots
- 4

- Network & Communication
- Layer Supported
- 3
 - Networking Standards
- IEEE 802.1x
 - IEEE 802.1Q
 - IEEE 802.3ad
 - IEEE 802.3x
 - IEEE 802.1p
 - IEEE 802.3az
 - IEEE 802.11ac
 - IEEE 802.1D
 - IEEE 802.1w
 - IEEE 802.1s
 - IEEE 802.1ab
 - IEEE 802.3
 - IEEE 802.3u
 - IEEE 802.3ab
 - IEEE 802.3z

- Management & Protocols
- Manageable
- Yes
 - Switch Management Type
- Smart Managed

- Reliability
- MTBF
- 346910 Hour

- Power Description
- PoE (RJ-45) Port
- No
 - Power Source
- Power Supply
 - AC
 - Number of Power Supplies Installed
- 1
 - Power Consumption
- 43 W

- Physical Characteristics
- Form Factor
- Rack-mountable
 - Desktop
 - Height
- 1.7"
 - Width
- 17.3"
 - Depth
- 10.1"
 - Weight (Approximate)
- 7.78 lb

- Miscellaneous
- Package Contents

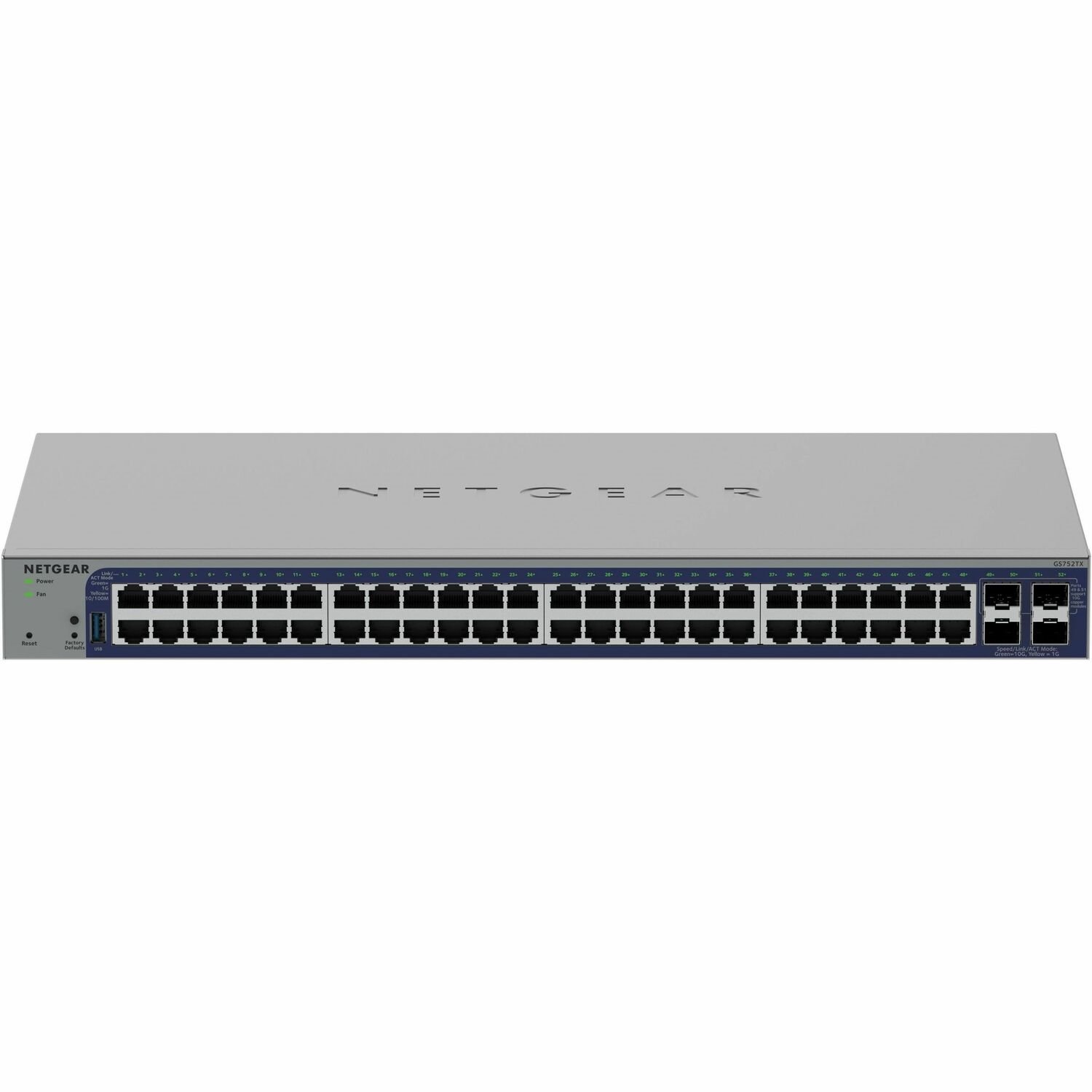

- Business GS752TXv3 Ethernet Switch
- AC Power Cord With C13 Connector
- Brackets and Screws For Rack Mounting
- Rubber Footpads For Tabletop Installation
- Rubber Protection Caps
- Installation Guide

 - Application/Usage
- Network
 - Wireless Access Point
 - IP Camera
 - IoT Devices
 - VoIP Phone
 - Business
 - Server
 - Security Camera
 - Security
 - Router
 - Surveillance
 - Certifications & Standards
- Electromagnetic Emissions and Immunity - CE
- FCC Class A
- RCM
- ICES Class A
- VCCI
- KC
- BSMI
- UKCA
 - Safety - CB
- CE
- CSA
- RCM
- KC
- BSMI
