Perfect Protection For Rack-Mount Systems
The PRO-RT Series is a value-priced, yet feature-rich UPS incorporating line-interactive technology that preserves battery power by providing voltage regulation during brownouts or voltage sags. The PRO-RT Series can be used to support servers, telecom or VoIP systems, security systems, plus many other applications.
The PRO-RT UPSs include many useful features such as load-shedding with two load banks, independent battery bypass, plus auto-re-start when power is restored after an extended power outage.
Versatile Communications
Each PRO-RT model is compatible with Minuteman's free downloadable SentryHD™ power management and diagnostic software. When installed on a workstation or server, the user gains complete control over monitoring and managing the UPS using a convenient web browser-based interface. The SentryHD software communicates via a built-in USB port on the UPS. In addition, managing the UPS within a Network Management System (NMS) is easy with the installation of an optional SNMP card.

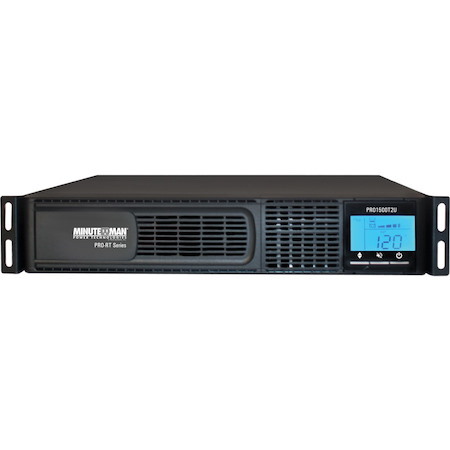

Designed for versatility, the PRO-RT models can be mounted in a standard rack using the attached rackmount ears. All units can also be installed as a tower using the included feet. An optional kit is available for mounting the unit to a wall.
High-end Features - Budget Friendly Price
The PRO-RT offers many features normally found on higher priced models, including an LCD status display which shows the following:
- Input / Output voltage and frequency
Monitor the status of your utility power - UPS and battery mode / status
Eliminate guesswork with straightforward display of the unit's status - Load capacity
Load indicator shows how much electrical load is being placed on the unit - Estimated runtime based on connected load
Find out how much backup time remains during a blackout right on the unit
Ideally Suited to Protect:
- Network Equipment
- Servers
- Workstations
- VoIP Communications
- IP and Analog Video Equipment
- General Information
- Manufacturer
- Para Systems, Inc
- Manufacturer Website Address
- http://www.minutemanups.com
- Brand Name
- Minuteman
- Product Series
- PRO-RT
- Product Type
- Line-interactive UPS
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Plug/Connector Type
- NEMA 5-15P
- Receptacle Type
- NEMA 5-15R
- Receptacle Detail
- 8 x NEMA 5-15R
- Dataline Protection
- RJ-11/RJ-45
- Transfer Time
- 10 ms
- Application/Usage
- Fax Machine
- Modem
- Network
- Server
- Data Storage
- Security System
- Telephone System
- Workstation
- VoIP Phone System
- Video Equipment
- Power Description
- Load Capacity (VA)
- 1500 VA
- Load Capacity (Watt)
- 1050 W
- Input Voltage
- 120 V AC
- Input Voltage Range
- 90 V AC - 150 V AC
- Output Voltage
- 120 V AC
- Input Frequency
- 60 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Simulated Sine Wave
- Surge Energy Rating
- 960 J
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Battery Information
- Battery Characteristics
- Sealed, Non-spillable, Maintenance-free, Valve-regulated
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 4 Minute
- Hot Swappable
- Yes
- Environmental Conditions
- Storage Temperature
- 32°F (0°C) - 104°F (40°C)
- Maximum Operating Elevation
- 9842.52 ft
- Maximum Storage Elevation
- 10000 ft
- Operating Humidity
- 5% - 95%
- Physical Characteristics
- Height
- 3.4"
- Width
- 18.9"
- Depth
- 20.1"
- Rack Height
- 2U
- Form Factor
- Tower/Rack/Wall Mountable
- Weight (Approximate)
- 48.70 lb
- Miscellaneous
- Certifications & Standards
- cTUVus
- Energy Star
- Yes
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS) 2
