- General Information
- Manufacturer
- Para Systems, Inc
- Manufacturer Website Address
- http://www.minutemanups.com
- Brand Name
- Minuteman
- Product Series
- EXR
- Product Type
- Line-interactive UPS
Line interactive sine wave rack/wall/tower UPSs with LCD Display for network data centers, remote IDF/MDF network closets, security systems, and education networks

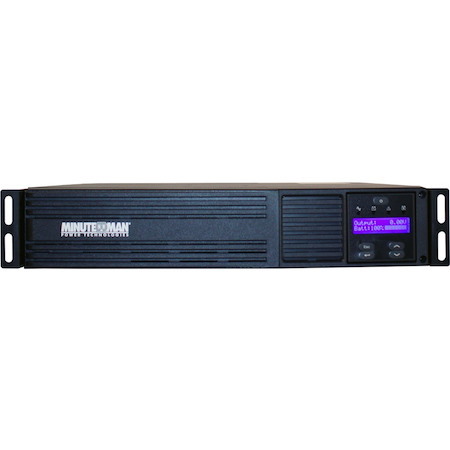

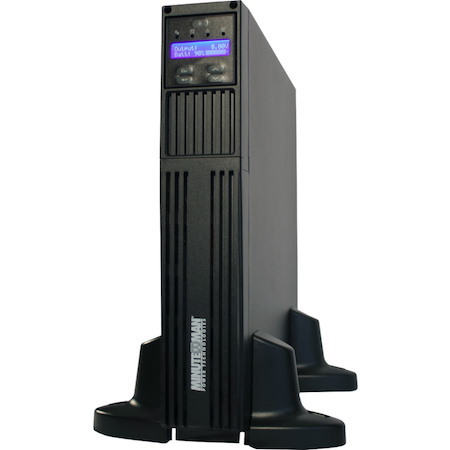

The Minuteman EXR Series UPS offers a true sine wave output, robust features, and versatile configuration options for a full range of critical networking applications.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- AVR
- Yes
- Plug/Connector Type
- NEMA L5-20
- Receptacle Type
- NEMA 5-20R

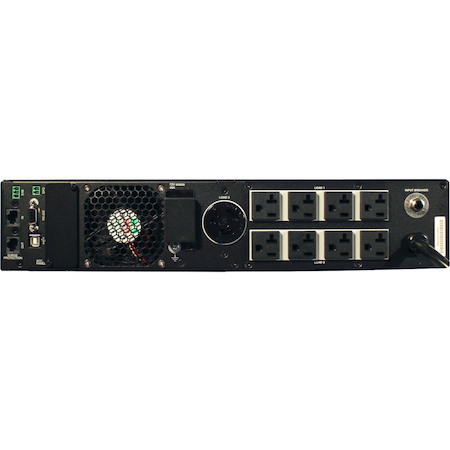

- Receptacle Detail
- 8 x NEMA 5-20R
- Phase
- Single Phase
- Application/Usage
- Network
- Server
- Network Closet
- Telecommunication
- VoIP Phone System
- Security System
- Power Description
- Load Capacity (VA)
- 2000 VA
- Load Capacity (Watt)
- 1800 W
- Input Voltage
- 120 V AC
- Input Voltage Range
- 80 V AC - 164 V AC
- 150 V AC - 281 V AC
- Output Voltage
- 120 V AC
- 230 V AC
- Input Frequency
- 60 Hz
- Waveform Type
- True Sine Wave
- Surge Energy Rating
- 1000 J
- Management
- Network Management
- SNMP/Webcard
- Controls/Indicators
- Status Indicators
- LCD Display
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- Yes
- EPO Port
- Yes
- Battery Information
- Backup/Run Time (Full Load)
- 4.50 Minute
- Backup/Run Time (Half Load)
- 13 Minute
- Hot Swappable
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Maximum Operating Elevation
- 9842.52 ft
- Operating Humidity
- 0% - 95%
- Physical Characteristics
- Height
- 3.5"
- Width
- 19"
- Rack Height
- 2U
- Form Factor
- Tower/Rack/Wall Mountable
- Weight (Approximate)
- 71.90 lb
- Miscellaneous
- Software Included
- Get ultimate control over your power with SentryHD
- Energy Star
- Yes
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Energy Efficiency Certification
- ENERGY STAR 2.0
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS) 2
