- General Information
- Manufacturer
- TRENDnet
- Manufacturer Website Address
- http://www.trendnet.com
- Brand Name
- TRENDnet
- Product Condition
- New
- Product Type
- Ethernet Switch
- 8 x Gigabit PoE+ ports
- PoE power budget 120W@24V - 200W@48V
- 16Gbps switching capacity
- Power supply sold separately (models: TI-S24048, TI-S12024)
- Hardened IP30 rated metal switch
- Includes DIN-Rail and wall mounts
- Operating temperature range of -40° - 75° C (-40° - 167° F)
- Dual 24 - 56V DC power inputs for redundancy
- Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12024, TI-S24048)

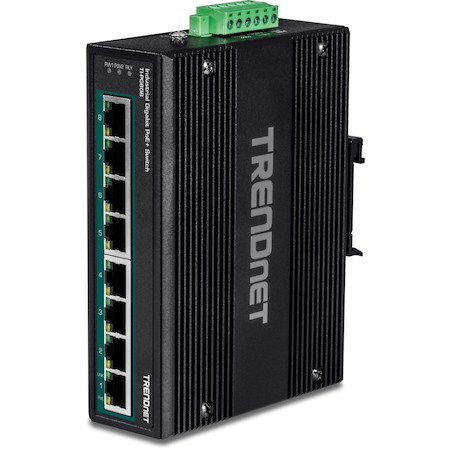

TRENDnet's 8-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG80B, is an industrial variable voltage switch with eight gigabit PoE+ ports and a 200W PoE power budget. Users are able to connect eight PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP30 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Dual 24 - 56V DC power inputs on the industrial variable voltage switch provide redundancy with power failure alarm relay. PoE Power The industrial variable voltage PoE switch features a 200W PoE+ power budget, and supplies up to eight Power over Ethernet devices with PoE+ power. Fault Tolerance The industrial variable voltage PoE switch features dual 24V - 56V DC power inputs for redundancy with overload current protection. Industrial Design Equipped with a rugged IP30 rated housing, resistant to a high degree of vibration and shock, and operates within a wide temperature range of -40° - 75° C (-40° - 167° F). PACKAGE CONTENTS TI-PG80B Quick Installation Guide Removable terminal block DIN-Rail and wall mount kit
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Port/Expansion Slot Details
- 8 x Gigabit Ethernet PoE+
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Network & Communication
- Layer Supported
- 2
- Power Description
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Physical Characteristics
- Form Factor
- DIN Rail Mountable
- Wall Mountable
- Height
- 3"
- Width
- 5"
- Depth
- 7"
- Weight (Approximate)
- 14.96 oz
- Miscellaneous
- Package Contents
- 8-Port Industrial Gigabit PoE+ DIN-Rail Switch
- Quick Installation Guide
- Removable Terminal Block
- DIN-Rail and Wall Mount Kit
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
- NDAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Certification
- China Environmental United Certification Center (CEC)
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
