- General Information
- Manufacturer
- TRENDnet
- Manufacturer Website Address
- http://www.trendnet.com
- Brand Name
- TRENDnet
- Packaged Quantity
- 10
- Product Type
- Ethernet Switch

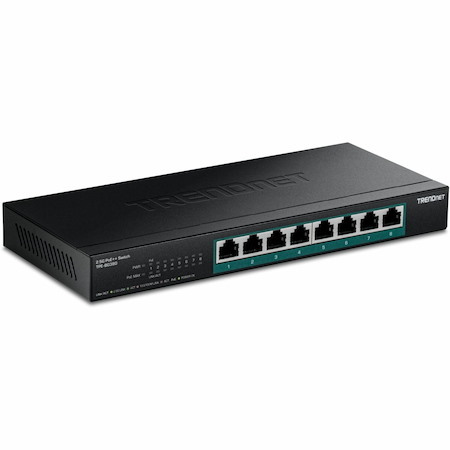

Expand your network's bandwidth and reduce traffic bottlenecks with TRENDnet's 8-Port 2.5G PoE++ Switch, model TPE-BG380. This 2.5G PoE++ switch is equipped with 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. This multi-gigabit PoE++ switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise.
TRENDnet's reliable 2.5G PoE++ switches are cost-effective solutions to increase your network's throughput. A 230W total PoE power budget on this multi-gig PoE++ switch supplies up to eight PoE devices with up to 95W per port. Easily network PoE devices such as high-power wireless access points, cameras, digital signage, IPTV decoders, access controls, and more with this highpower 2.5 gigabit PoE++ switch.
- POE+ POWER & SWITCHING CAPACITY: Equipped with 40Gbps switching capacity, and a 230W PoE power budget with over current and short circuit protection. PoE++ reduces equipment cost by delivering data and power over existing network cables 2.5 GIGABIT PORTS: Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling
- LIFETIME PROTECTION -We stand by the quality of our products. The TPE-BG380 8-Port 2.5G PoE++ Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
- NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
- BACKWARD COMPATABILITY: The 8 Port network switch is backwards compatible with 10/100/1000Mbps legacy devices
- FANLESS DESIGN: The fanless 8 Port 2.5G PoE++ switch design lowers unnecessary energy consumption and eliminates disruptive operating noise
- JUMBO FRAME: Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance
- IEEE 802.3af/at/bt compliant
- WALL MOUNTABLE: The 2.5G PoE++ switch features a metal housing, and a convenient wall mountable design for greater installation flexibility.
- Technical Information
- Features
- Fanless
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x 2.5Gigabit Ethernet PoE++ Ports
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- 2.5 Gigabit Ethernet
- Network Technology
- 2.5GBase-T
- Maximum Data Transfer Rate
- 640 MB/s
- Network & Communication
- Networking Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.3bz
- Management & Protocols
- Manageable
- No
- Reliability
- MTBF
- 288800 Hour
- Power Description
- PoE Budget
- 230 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- PoE++
- Power Adapter
- AC
- Power Consumption
- 9.50 W
- Physical Characteristics
- Form Factor
- Wall Mountable
- Desktop
- Height
- 1.1"
- Width
- 9.4"
- Depth
- 4.1"
- Weight (Approximate)
- 1.58 lb
- Miscellaneous
- Application/Usage
- Wireless Access Point
- Network
- Camera
- Digital Signage
- TAA Compliant
- Yes
