- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com/us
- Brand Name
- TP-Link
- Product Line
- VIGI
- Product Type
- Network Camera
Security Never Shuts Down

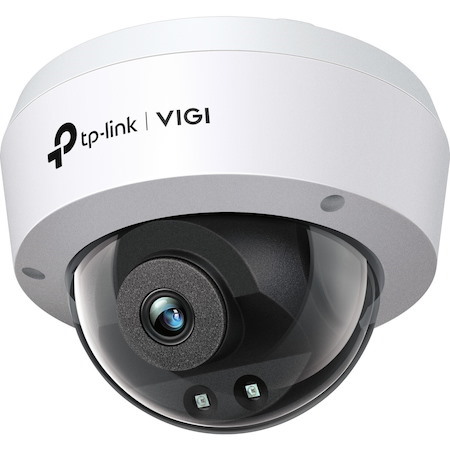

4MP IR Dome Network Camera
Looking for a higher resolution? It's right here.4MP Super-High Definition
The VIGI C240I camera comes with 4MP-more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Never miss a detail.SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
Discover the best way to power your camera.PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Choose the right lens for your security.2.8/4 mm Lens
Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C240I comes with two different lens versions to better suit your security needs.
Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger
- Technical Information
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 98.43 ft
- Night Vision Type
- Infrared
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/3"
- Color Supported
- Color
- Field of View
- 88.8°/48.9°/106.5°(H/V/D)
- Effective Camera Resolution
- 4 Megapixel
- Video
- Video Formats
- H.265+
- H.265
- H.264
- H.264+
- Maximum Video Resolution
- 2560 x 1440
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 2.80 mm
- Lens Included
- Yes
- Lens Mount Type
- M12-mount
- Maximum Aperture
- f/2.2
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet Technology
- Fast Ethernet
- Remote Management
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Input Voltage
- 12 V DC
- Power Source Type
- PoE
- DC
- Physical Characteristics
- Form Factor
- Dome
- Durability
- Vandal Proof
- Water Proof
- Vandal Resistant
- Rain Resistant
- Dust Resistant
- Weather Proof
- Height
- 4.5"
- Width
- 4.5"
- Depth
- 3.4"
- Environmental Conditions
- Minimum Operating Temperature
- -22°F (-30°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Miscellaneous
- Features
- Human Detection
- Vehicle Detection
- Rugged Design
- Wide Dynamic Range
- 3D Digital Noise Reduction
- Alarm Triggering
- Motion Detection
- Cross Line Detection
- Password Protection
- HTTPS Encryption
- Mirror
- Privacy Masking
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP67
