- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com/us
- Brand Name
- TP-Link
- Product Line
- VIGI
- Product Type
- Network Camera

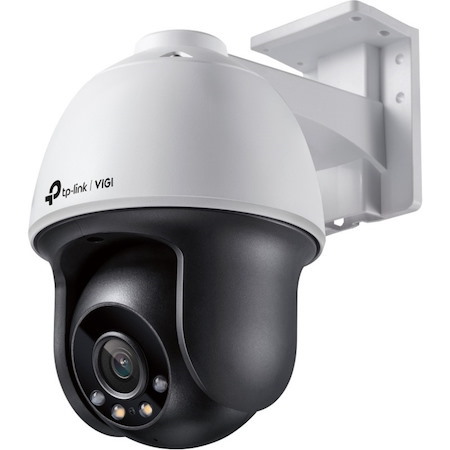

Powerful Pan Tilt
Cover every corner flexibly with VIGI's Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.
Outdoor PoE Connection, Simple Wiring
Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business.Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
Motion DetectionGet instant notifications when your camera detects motion.
Area IntrusionSet customized activity zones around key areas for more focused monitoring.
Line-CrossingSet a boundary and receive an alert anytime a person crosses it from either or both directions.
Camera TamperingReceive alerts when someone obstructs the camera.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.
Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.
Never miss a detail.SmartVid-Smart Video Enhancement
Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Flexible Management and Storage
Take full control over your security via three management methods, VIGI NVR, App, and Security Manager. Local storage is available for each method, as well as onboard storage with an SD card slot.
- Technical Information
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 98.43 ft
- Night Vision Type
- Infrared
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Field of View
- Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
- Effective Camera Resolution
- 4 Megapixel
- Video
- Video Formats
- H.265+
- H.265
- H.264+
- H.264
- Maximum Video Resolution
- 2560 x 1440
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 4 mm
- Lens Included
- Yes
- Lens Mount Type
- M12-mount
- Maximum Aperture
- f/1.6
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Input Voltage
- 12 V DC
- Power Source Type
- DC
- PoE
- Physical Characteristics
- Mount Type
- Ceiling Mount
- Wall Mount
- Pole Mount
- Form Factor
- Dome
- Durability
- Water Proof
- Color Family
- White
- Product Color
- White
- Height
- 4.7"
- Width
- 6.8"
- Depth
- 7.8"
- Weight (Approximate)
- 6.88 oz
- Environmental Conditions
- Minimum Operating Temperature
- -509.8°F (-301°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Miscellaneous
- Features
- Human Detection
- Motion Detection
- Cross Line Detection
- Tamper Detection
- SD Card Local Storage
- Digital Wide Dynamic Range (D-WDR)
- 3D Digital Noise Reduction
- Password Protection
- White Balance
- Back Light Compensation (BLC)
- Indoor/Outdoor
- Outdoor
- Ingress Protection Rating
- IP66
