- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Line
- SuperServer
- Product Type
- Server Barebone System
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 2
- Processor Socket
- Socket R3 LGA-2011
- Processor Supported
- Xeon
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C612
- Memory
- Maximum Memory Supported
- 1 TB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-2400/PC4-19200
- Total Number of Memory Slots
- 16
- Controllers
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- Display & Graphics
- Graphics Controller Model
- AST2400
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 4
- Total Number of Expansion Slots
- 4
- Number of PCI Express x8 Slots
- 1
- Number of PCI Express x16 Slots
- 3
- Interfaces/Ports
- Total Number of USB Ports
- 2
- Number of USB 3.0 Ports
- 2
- Number of SATA Interfaces
- 6
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 2000 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack-mountable
- Rack Height
- 1U
- Height
- 1.7"
- Width
- 17.2"
- Depth
- 39.3"
- Weight (Approximate)
- 45 lb
- Miscellaneous
- Package Contents

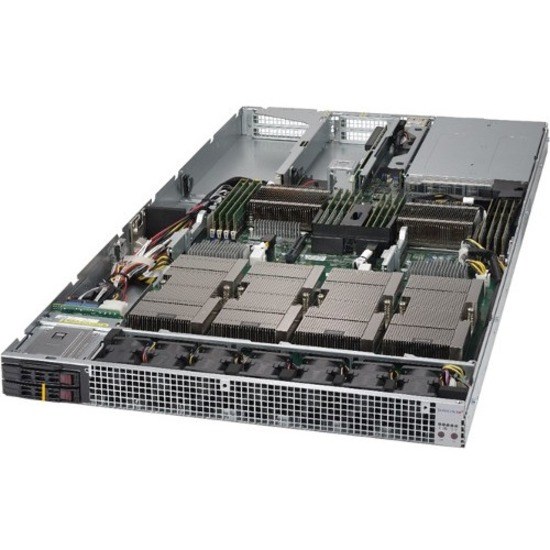

- SuperServer 1028GQ-TVRT (Black)
- 1 x Super X10DGQ Motherboard
- 1 x CSE-118GQP-R2K05B Chassis
- 1 x AOM-PIO-I2XT
- 1 x AOM housing Volta SXM 2.0 modules in conjunction with X11DGQ DP MB,HF,RoHS
- 1 x 2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
- 4 x SATA,INT,ROUND,ST-ST,55CM,30AWG
- 1 x PCIe 8 pin female(black) to CPU 8 pin female(white), M60/M40 GPU power cable, 30cm, 18AWG, 10A/pin, 0~80C, RoHS/REACH
- 1 x GPU,2x4F/RA/PCIe to 2x4F/CPU, P4.2, 42CM,17AWG, 8A/pin, -25~85C, RoHS/REACH
- 4 x Oculink-Oculink 8 lanes Pascal Cable 50cm 34AWG,RoHS
- 2 x GPU,2x4F/RA/PCIe to 2x4F/RA/CPU, P4.2, 5.5CM,17AWG, 8A/pin, -25~85C, RoHS/REACH
- 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
- 1 x SYS-1028GQ-TR(T) Quick Reference Guide,HF,RoHS/REACH
- 1 x RSC-G-68
- 1 x 1U GPU Riser Card with 2 PCI-E x16 slot
- 2 x 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Square ILM MB
- 4 x 1U Passive GPU Heat Sink for NVIDIA SXM2 Module in SYS-1028GQ-TXR(T) Series Servers
- 4 x 1U Passive GPU Heat Sink for NVIDIA SXM2 Module Equipped with Pascal or Volta GPU
- 2 x 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
- 7 x 40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan
- 1 x Rail set, Quick/Quick, Auto Latch, 548mm Short Version, 685mm~812.8mm(27"~32"), 1U 17.2 SC118GQE 1U 4xGPU
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
