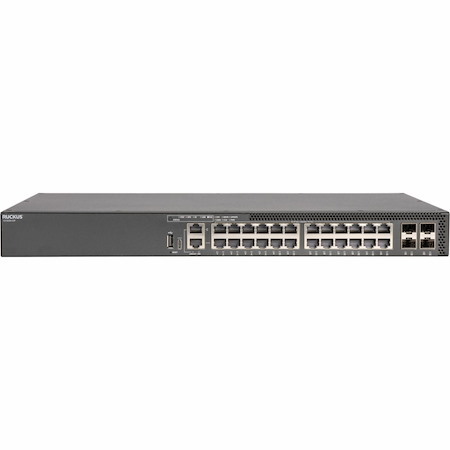

The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability.
The RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, cost-effectiveness, and "pay as you grow" scalability of stackable solution.
Maximum flexibility: Gigabit, Multigigabit edge ports and Fiber to the Room
- Optimized for latest generation Wi-Fi 6/6E/7 AP deployments with multigigabit ports.
- 8, 24 and 48 Gigabit Ethernet ports
- Up to 24x 1/2.5G Multigigabit RJ45 ports
- Up to 4× 1/2.5/5/10 Gbps Multigigabit RJ-45 ports
- Up to 48x 1G SFP fiber ports
- Up to 24x 10G SFP+ fiber ports
Power next generation APs and PoE devices
- PoE+ 802.3at, 30W per port on all ports · PoE++ 802.3bt, 60/90W on multigigabit ports
- Up to 1480W PoE budget with two power supplies
25 GbE uplinks/stacking for maximum performance and future-proofing
- Stacking comes standard with all ICX 8200
- Up to 8x 1/10/25GbE SFP28 fiber ports for uplink and/or stacking
Enhanced Security and data privacy
- VXLAN support for advanced network segmentation and data confidentiality
Advanced L3 routing delivers network design flexibility
- IPv4 and IPv6 L3 routing
- Static routes, RIP, OSPF, VRRP, VRF, GRE, PIM, PBR
Broad range of unified management options for maximum flexibility
- On Premises: SmartZone
- Cloud Based: RUCKUS Cloud
- Controllerless: RUCKUS Unleashed
- RUCKUS Analytics
Enhanced availability
- Redundant, load-sharing power supplies and fans on specific models
- General Information
- Manufacturer
- CommScope, Inc
- Manufacturer Website Address
- http://www.commscope.com
- Brand Name
- RUCKUS
- Product Series
- ICX 8200
- Product Type
- Ethernet Switch
- Interfaces/Ports
- Total Number of Network Ports
- 24
- Uplink Port
- Yes
- Modular
- Yes
- Stack Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 4 x 25 Gigabit Ethernet Uplink/Stacking
- 24 x Gigabit Ethernet Network
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- 25 Gigabit Ethernet
- Network Technology
- 1000Base-T
- 25GBase-X
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP28
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.3ad
- IEEE 802.3bz
- IEEE 802.1ab
- IEEE 802.3
- IEEE 802.3x
- IEEE 802.1p
- IEEE 802.1br
- IEEE 802.3ae
- IEEE 802.3u
- IEEE 802.1Q
- IEEE 802.1D
- IEEE 802.3z
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3bt
- IEEE 802.1AX
- IEEE 802.1x
- IEEE 802.3az
- IEEE 802.3ab
- Management & Protocols
- Manageable
- Yes
- Reliability
- MTBF
- 1543328 Hour
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Power Source
- AC
- Power Supply
- Power Consumption
- 31 W
- Plug/Connector Type
- C14
- Physical Characteristics
- Form Factor
- Wall Mountable
- DIN Rail Mountable
- Rack-mountable
- Height
- 1.7"
- Width
- 17.3"
- Depth
- 11"
- Weight (Approximate)
- 8.25 lb
- Miscellaneous
- Application/Usage
- Business
- Office
- Campus
- Industrial
- Enterprise
- Network
- TAA Compliant
- Yes
