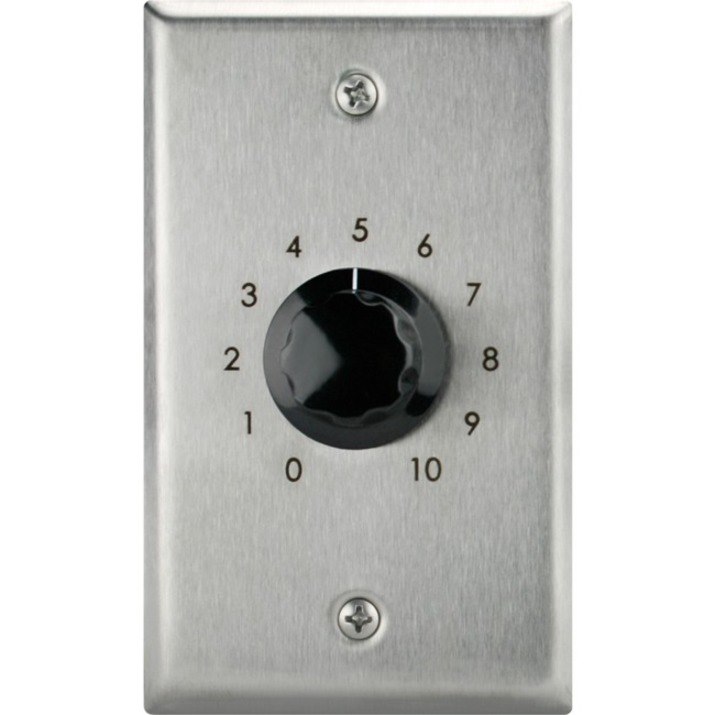

Valcom's V-1094A Page Port Preamp/Expanders are a solid state audio amplifier that expands the number of Valcom amplified speakers on a zone. The V-1094A features a brushes stainless-steel plate with embossed numbers and bell box (single gang electrical wall box). The V-1094B does not include the bell box. The page port preamp/expander will interface 600-ohm type page ports to up to 150 Valcom amplified speakers or expand the number of Valcom amplified speakers on a zone by 150.
- General Information
- Manufacturer
- Valcom, Inc
- Manufacturer Website Address
- http://www.valcom.com
- Brand Name
- Valcom
- Product Type
- Audio Control Device
- Warranty
- Limited Warranty
- 1 Year
- Physical Characteristics
- Product Material
- Stainless Steel
- Form Factor
- Wall Mountable
- Height
- 4.4"
- Width
- 2.8"
- Depth
- 2"
- Weight (Approximate)
- 12.80 oz
- Miscellaneous
- Additional Information
AUDIO INPUT
- Input: 600 Ohms
AUDIO OUTPUT
- Output: 8 Ohms
FREQUENCY RESPONSE
- 80 Hz to 10 kHz +/- 3 dB
POWER REQUIREMENTS
- Voltage: -21 to -26 Vdc Idle
- Current: 12 mA
- Operating current: 15 mA
GAIN
- +8 dB maximum (Into 8-Ohms load)
