- General Information
- Manufacturer
- Tripp Lite by Eaton
- Manufacturer Website Address
- https://tripplite.eaton.com/
- Brand Name
- Tripp Lite by Eaton
- Product Type
- Network Cable

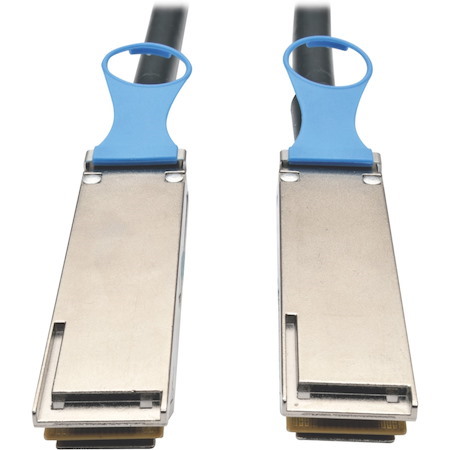

The N282-03M-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable provides next-generation performance by combining four 28 Gbps SFP channels into one high-density cable. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets.
This three-meter copper cable integrates a 100G Ethernet-optimized (100 GbE) 38-position "board-as-connector" design with zinc die-cast male QSFP+ connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 100-Gigabit Ethernet (100GBASE-CR4), 128G Fibre Channel and EDR 4x InfiniBand.
Flexible 26 AWG conductors maintain a smooth high-frequency response. The N282-03M-28-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8665 architecture for guaranteed compatibility with all QSFP and QSFP+ ports, as well as RoHS and IEEE 802.3bj.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Cable Type
- InfiniBand
- Cable Length
- 10 ft
- Connector Type on First End
- QSFP28 Network - Male
- Connector on First End Details
- 1 x QSFP28 Network - Male
- Connector Type on Second End
- QSFP28 Network - Male
- Connector on Second End Details
- 1 x QSFP28 Network - Male
- Device Supported
- Network Device
- American Wire Gauge
- 26 AWG
- Data Transfer Rate
- 100 Gbit/s
- Features
- Passive
- Flexible
- Crosstalk Protection
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Miscellaneous
- Environmentally Friendly
- Yes
- Country of Origin
- China
