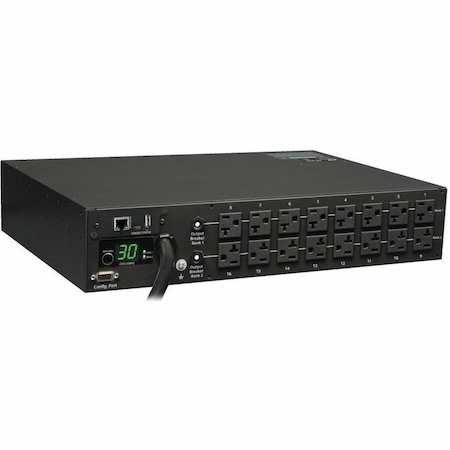

Eaton 2.9kW Single-Phase Monitored PDU - 120V Outlets (16 5-15/20R), L5-30P, 10 ft. (3.05 m) Cord, 2U Rack-Mount, TAA

  • Part: 1060402
  • Model: PDUMNH30
$995.00

Availability

In Stock

2.9kW Single-Phase Monitored PDU with LX Platform Interface

Tripp Lite's PDUMNH30 distributes and monitors single-phase 120V power to connected rack equipment in data centers, network closets, server rooms, computer rooms and other applications requiring network-grade power. Its built-in network interface allows real-time remote monitoring of voltage, frequency and load levels to prevent overloads that cause expensive downtime. It features 16 NEMA 5-15/20R outlets and a 10-foot (3-meter) power cord with NEMA L5-30P plug, which connects the PDU to a compatible AC power source, generator or protected UPS system.

Built-In LX Platform Network Management Interface Card

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities, including temperature and humidity conditions. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. DHCP/Manual configuration lets you assign network settings to the card automatically, reducing the need for manual configuration. Automated alerts help prevent accidental overloads, power loss and downtime.

Digital Load Meter

The easy-to-read two-character digital LED meter displays output load levels in three segments: breakered bank 1, breakered bank 2 and total PDU output. Monitoring the individual breakered load banks helps ensure proper balance across the two output load banks. Monitoring total PDU output helps prevent PDU and supply circuit overloads that cause downtime.

Optimized for Demanding Applications

The all-metal housing is designed to endure in busy, demanding IT and industrial environments. The included cord retention brackets for the outlets help prevent connected equipment from becoming accidentally disconnected. Real-time clock backup maintains the time of day and date, even if the PDU is shut down and unpowered.

Versatile Installation Options

This server rack PDU features a 2U horizontal rack-mount form factor. Mounting flanges support installation in 2- and 4-post racks, with additional support for wall-mount and under-counter installation. Mounting ears are reversible for front- or rear-facing rack-mount installation.

TAA-Compliant for GSA Schedule Purchases

The PDUMNH30 monitored power distribution unit is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

2-Year Warranty and Environmentally Responsible Design

This monitored PDU comes with a 2-year limited warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.

More from the Manufacturer

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Series
    • Monitored
    • Product Type
    • PDU
  • Warranty
    • Limited Warranty
    • 2 Year

  • Technical Information
    • PDU Type
    • Monitored
    • Plug/Connector Type
    • NEMA L5-30P
    • Receptacle Type
    • NEMA 5-15/20R
    • Receptacle Detail
    • 16 x NEMA 5-15/20R
    • Protection Type
    • Overload Protection
  • Power Description
    • Input Voltage
    • 120 V AC
    • Output Voltage
    • 120 V AC
  • Management
    • Management

    • Protocols:

      • HTTP
      • HTTPS
      • SMTP
      • SNMPv1
      • SNMPv2
      • Telnet
      • FTP
      • DHCP
      • BOOTP
      • NTP
  • Physical Characteristics
    • Mount Type
    • Rack-mountable
    • Rack Height
    • 2U
    • Height
    • 3.5"
    • Width
    • 17.5"
    • Depth
    • 12.5"
    • Weight (Approximate)
    • 13.80 lb
  • Miscellaneous
    • Package Contents
      • Monitored PDUMNH30 16-Outlets PDU
      • Plug Retention Plates
      • Rack Mounting Brackets
      • Owner's Manual
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
