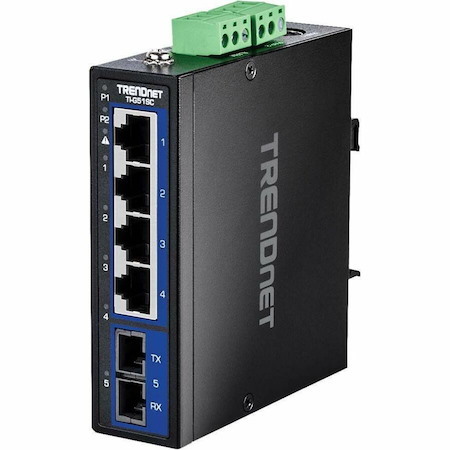

TRENDnet's 5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port, model TI-G51SC, features a rugged IP30 rated metal enclosure and is designed to work in the harshest networking environments. This industrial switch with a fiber port is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures of industrial environments within - 40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection on the industrial unmanaged switch minimizes network downtime. This hardened industrial switch features copper gigabit ports for high-speed device connections, and a gigabit multi-mode SC port for long-distance fiber networking applications up to 550 meters.
- 4 x Gigabit ports
- 1 x Gigabit Multi-Mode Fiber SC port
- Hardened IP30 rated metal switch
- Extreme -40° - 75° C (-40° - 167° F) operating temperature range
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- 10Gbps switching capacity
- Includes DIN-Rail and wall mounts
- Power supply sold separately (models: TI-M6024, TI-S15052, 48VDC3000)
- Lifetime Warranty
- General Information
- Manufacturer
- TRENDnet
- Manufacturer Website Address
- http://www.trendnet.com
- Brand Name
- TRENDnet
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Features
- IP30
- Surge Protection
- Interfaces/Ports
- Total Number of Network Ports
- 5
- Modular
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 4 x Gigabit Ethernet Network
- 1 x Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 1000Base-T
- 1000Base-SX
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3z
- Management & Protocols
- Manageable
- No
- Reliability
- MTBF
- 71955 Hour
- Power Description
- Input Voltage
- 9 V DC
- 60 V DC
- Power Source
- DC
- Power Supply
- Power Adapter
- Power Consumption
- 3.60 W
- Plug/Connector Type
- Terminal Block
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- DIN Rail Mountable
- Wall Mountable
- Height
- 1.1"
- Width
- 3.5"
- Depth
- 3.5"
- Weight (Approximate)
- 10.30 oz
- Miscellaneous
- Package Contents
- 5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port
- Quick Installation Guide
- Removable terminal block
- DIN-Rail / wall mount kit
- Application/Usage
- Industrial
- Country of Origin
- Taiwan
