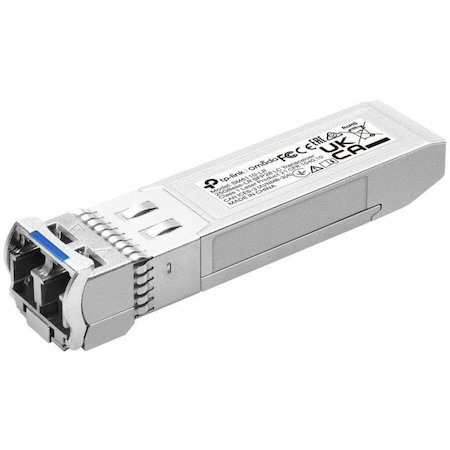

What This Product Does The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com/us
- Brand Name
- TP-Link
- Product Line
- Omada
- Product Type
- SFP28
- Technical Information
- Application/Usage
- Data Networking
- Optical Network
- Interfaces/Ports
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC 25GBase-LR Duplex Network
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Ethernet Technology
- 25 Gigabit Ethernet
- Network Technology
- 25GBase-LR
- Maximum Distance Supported
- 10 km
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 158°F (70°C)
- Power Description
- Input Voltage
- 3.3 V
- Physical Characteristics
- Form Factor
- Hot-swappable
- Hot-pluggable
- Height
- 0.5"
- Width
- 2.2"
- Depth
- 0.6"
- Miscellaneous
- Compatibility
MSA Compliant
TP-LINK Switches:
- SX6632YF
- SG3428X
- SG3452X
