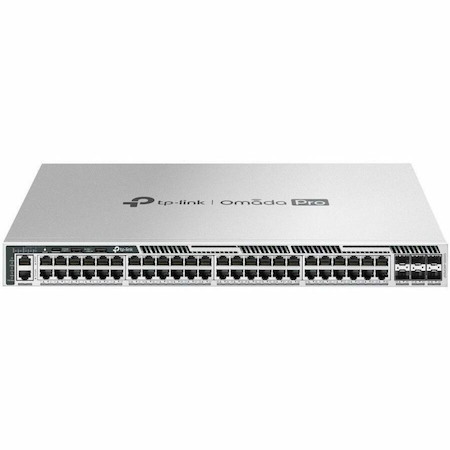

Omada Pro is an intelligent cloud solution for enterprise networking, offering enterprise-grade product line designed to meet the high-capacity, security, and management needs of various industries, such as MDUs, hospitality, K-12 education, public works, and more.
- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com/us
- Brand Name
- TP-Link
- Product Line
- Omada Pro
- Product Type
- Ethernet Switch
- Technical Information
- Features
- Hot-swappable
- Energy Efficient
- Secure Boot
- Surge Protection
- Loop Protection
- DHCP Snooping
- Interfaces/Ports
- Total Number of Network Ports
- 48
- Uplink Port
- Yes
- Stack Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 48 × 10/100/1000Base-T Gigabit Ethernet PoE+ RJ-45 Network Port
- 6 x 1/10 Gigabit Ethernet SFP+ Expansion Slot
- 1 × RJ-45 Console Port
- 1 x USB Type C Console Port
- 1 × RJ-45 Management Port
- 2 × USB 2.0 USB Port
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- 10GBase-X
- Maximum Data Transfer Rate
- 1.25 GB/s
- I/O Expansions
- Total Number of Expansion Slots
- 6
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 6
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.1ab
- IEEE 802.1p
- IEEE 802.3az
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3x
- IEEE 802.3ad
- IEEE 802.1Q
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- Management & Protocols
- Manageable
- Yes
- Reliability
- MTBF
- 648538 Hour
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 1440 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- AC
- PoE+
- PoE
- Redundant Power Supply Supported
- Yes
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 1
- Power Consumption
- 1767.70 W
- Physical Characteristics
- Color Family
- Gray
- Product Color
- Gray
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.3"
- Depth
- 16.5"
- Miscellaneous
- Application/Usage
- Enterprise
- Network
- Education
- Retail
- Security
- Router
