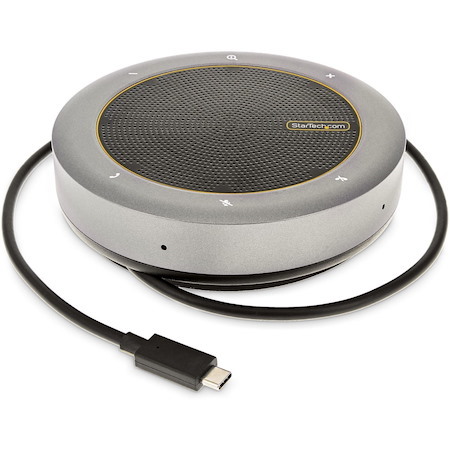

This USB Type-C Conference Speaker Mini Dock features a speakerphone, HDMI/VGA video output, USB-C PD pass-through/data, a USB-A x2 hub, a built-in USB-C host cable, and tap/touch buttons with LED indicators. It simplifies a workstation setup, converting any desk into a teleconferencing space. The dock features HDMI or VGA single-video output. It has 2 USB-A ports and a USB-C port with the option for Power Delivery (PD) pass-though.. The Conference Speaker Dock connects to the host device, using a built-in wraparound 22 in. (56 cm) USB-C host cable. Connect this host cable to a USB-C or Thunderbolt 3/4™ port.
Unified Collaboration Platform Compatibility
The Speakerphone Dock is optimized for use with Unified Communications (UC) platforms, such as Microsoft Teams, Zoom, Google Meet, etc. The dock features buttons that intuitively control functions within the UC platform:
- Call Button -</b>Tap to receive and accept an incoming call.
- Hang up Button -</b>Tap to disconnect from the current call or to reject an incoming call.
- +/- Volume Buttons</b> - Tap to adjust the system volume.
- Mute Button</b> - Tap to disable the built-in microphone.
The dock is optimized for Microsoft Teams and fully compatible with other UC/softphone applications including Zoom, Skype, and Google Meet.
Conference Speaker and Omnidirectional Microphones
Capture voices from up to 7.5ft (2.3m) away, using the dual-omnidirectional microphones (100Hz to 10kHz) with echo cancellation and noise reduction. The microphones are ideal for capturing audio in mid-size meeting rooms (6-8 people) or from any location in a home office room. The speakers deliver 89dB (100Hz - 20kHz) distortion-free high-definition audio.
Easy Deployment
The speaker dock features docking station connectivity options in a quick-to-deploy format. Connect an HDMI or VGA enabled display device for single-video output. The HDMI video output supports resolutions up to 4K 60Hz. The VGA video output supports resolutions up to 1080p 60Hz.
- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- Speakerphone
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Wired
- Cable Length
- 21.96"
- Meeting Persons Capacity
- 8
- Application/Usage
- Board Room
- Workstation
- Conference Room
- Home Office Room
- Office Room
- Meeting Room
- Features
- Echo Cancellation
- Noise Reduction
- Microphone
- Polar Pattern
- Omni-directional
- Microphone Frequency Response
- 100Hz - 10kHz
- Microphone Pickup Range
- 90"
- Speaker
- Peak Audio Output
- 89 dB
- Sound Pressure Level
- 89 dB
- Speaker Frequency Response
- 100Hz to 20kHz
- Interfaces/Ports
- USB
- Yes
- USB Standard
- USB 3.2
- USB Type-C
- Yes
- Number of USB Type-C Ports
- 1
- USB Type-C (Power Delivery)
- 100 W
- HDMI
- Yes
- Number of HDMI Ports
- 1.0
- HDMI Version
- HDMI 2.0
- Video Ports
- 1 x VGA (15 pin, High Density D-Sub)
- Host Interface
- USB-C
- Controls/Indicators
- Status Indicators
- Incoming
- Hang Up Call
- Mute
- Controls
- Reject Call
- Volume Down
- Volume Up
- Call
- Power Description
- Power Consumption
- 15 W
- Physical Characteristics
- Product Color
- Space Gray
- Product Material
- Plastic
- Form Factor
- Desktop
- Height
- 1.40"
- Width
- 5.10"
- Length
- 5.10"
- Weight (Approximate)
- 13.76 oz
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Minimum Storage Temperature
- -4°F (-20°C)
- Maximum Storage Temperature
- 149°F (65°C)
- Miscellaneous
- Package Contents
- Speakerphone
- 1 x Quick-Start Guide
- Compatibility
- Chromebook
- HP
- Lenovo
- Dell
- MacBook
- iPhone 15 Plus
- iPhone 15 Pro
- iPhone 15 Max
Notebooks of:
Apple Smartphones:
- Operating System Supported
- Windows 8.1
- Windows 8
- Windows 7
- Windows 11
- Windows 10
- Chrome OS
- macOS Catalina
- macOS Monterey
- macOS Big Sur
- Unified Communications Platform
- Microsoft Teams
- Zoom
- Skype
- Google Meet
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
