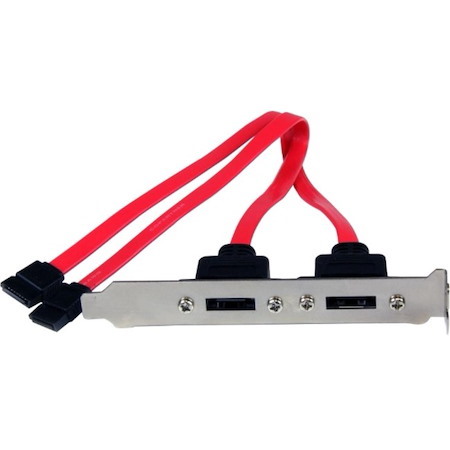

StarTech.com 2 Port SATA to eSATA Slot Plate Bracket - Serial ATA internal to external panel - 7 pin Serial ATA - 7 pin external Serial ATA

  • Part: 1055200
  • Model: ESATAPLATE2
$9.00

Availability

In Stock

StarTech.com's eSATA SATA adapter plate adds external data support to any existing Serial ATA controller, adding two eSATA ports for connection to external SATA devices.

The adapter plate can be mounted to the rear panel of the computer case, providing straightforward eSATA to SATA connections and allowing users to connect their eSATA device (hard drive enclosure, etc.) to the provided eSATA port which is an extension of the motherboard SATA data connector.

Designed to take advantage of the increased data integrity provided by external hard drives or RAID devices that support eSATA connections, the eSATA SATA adapter supports data transfer rates of up to 6Gbps and is backed by StarTech.com's Lifetime Warranty.

More from the Manufacturer

  • General Information
    • Manufacturer
    • StarTech.com
    • Manufacturer Website Address
    • http://www.startech.com
    • Brand Name
    • StarTech.com
    • Product Type
    • Data Transfer Cable
  • Warranty
    • Limited Warranty
    • Lifetime

  • Technical Information
    • Cable Type
    • eSATA/SATA
    • Cable Length
    • 1 ft
    • Connector Type on First End
    • eSATA - Female
    • Connector on First End Details
    • 2 x eSATA - Female
    • Connector Type on Second End
    • SATA - Male
    • Connector on Second End Details
    • 2 x 7-pin SATA - Male
    • Conductor
    • Copper
    • Device Supported
    • Computer
    • Hard Disk Drive Enclosure
    • External Hard Drive
    • RAID Controller
    • SATA Controller
    • Motherboard
    • Data Transfer Rate
    • 6 Gbit/s
  • Physical Characteristics
    • Product Color
    • Black
    • Weight (Approximate)
    • 0.12 lb
  • Miscellaneous
    • Environmentally Friendly
    • Yes
    • Country of Origin
    • China
