- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- Docking Station

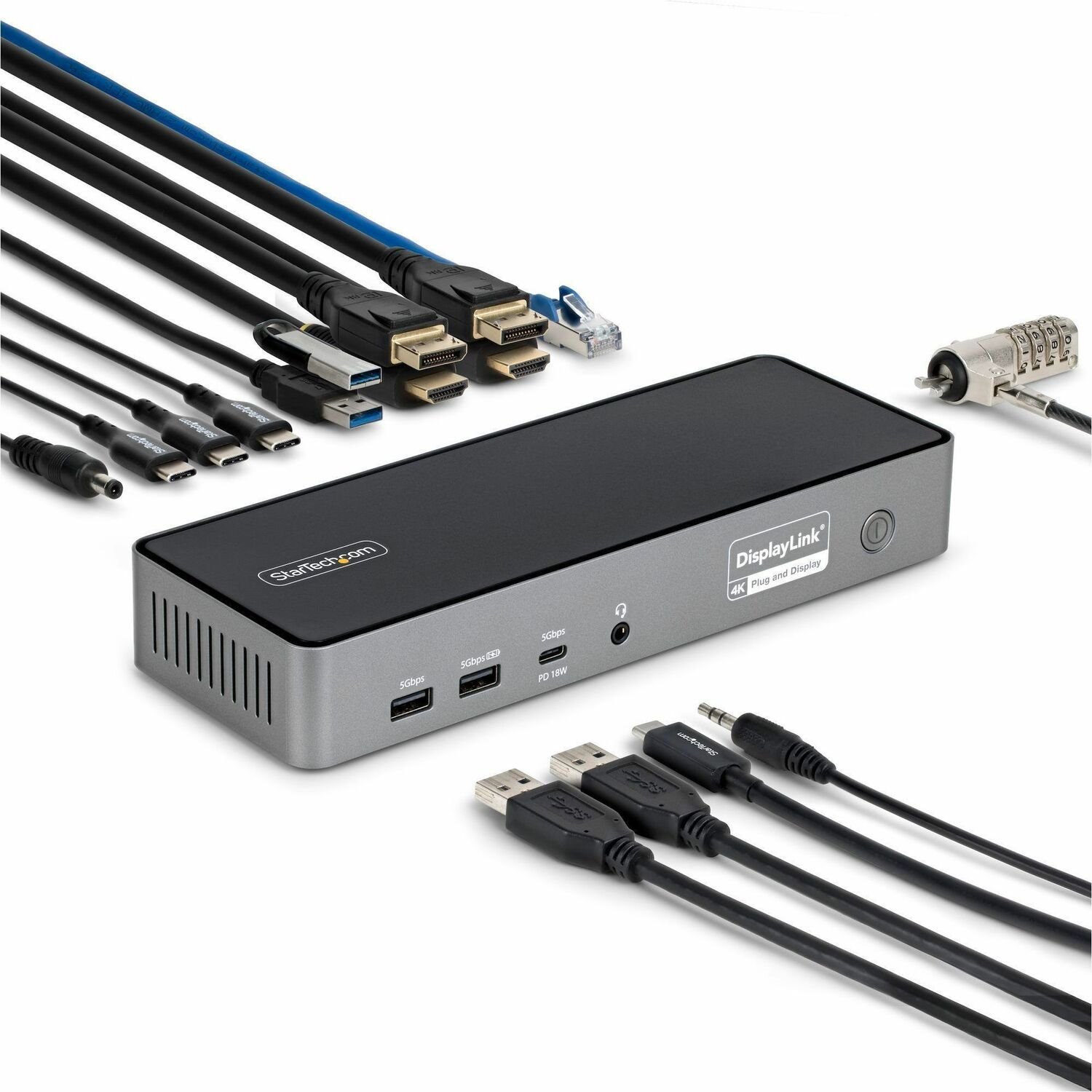

This universal docking station offers high-resolution display support and broad OS compatibility to simplify device management and user experience, making it ideal for modern professional workspaces including hot desks and mixed-device environments.
Triple 4K Display Support & 140W USB-C Charging
Support up to three 4K 60Hz monitors via USB-C while delivering up to 140W of power to high-performance laptops. A USB-A adapter extends compatibility to legacy systems, enabling flexible dual-display setups in shared workstations and hybrid IT environments.
GPU Agnostic for Cross-Platform IT Deployments
DisplayLink-based HDMI and DisplayPort outputs enable multi-monitor setups on macOS, Windows, and ChromeOS. The USB-C video output port leverages the laptop's built-in GPU to deliver high-performance video output. A unified driver experience simplifies hot desk provisioning, reduces IT support overhead, and ensures consistent performance across transient and mobile workstations.
Enterprise-Grade Networking & Physical Security

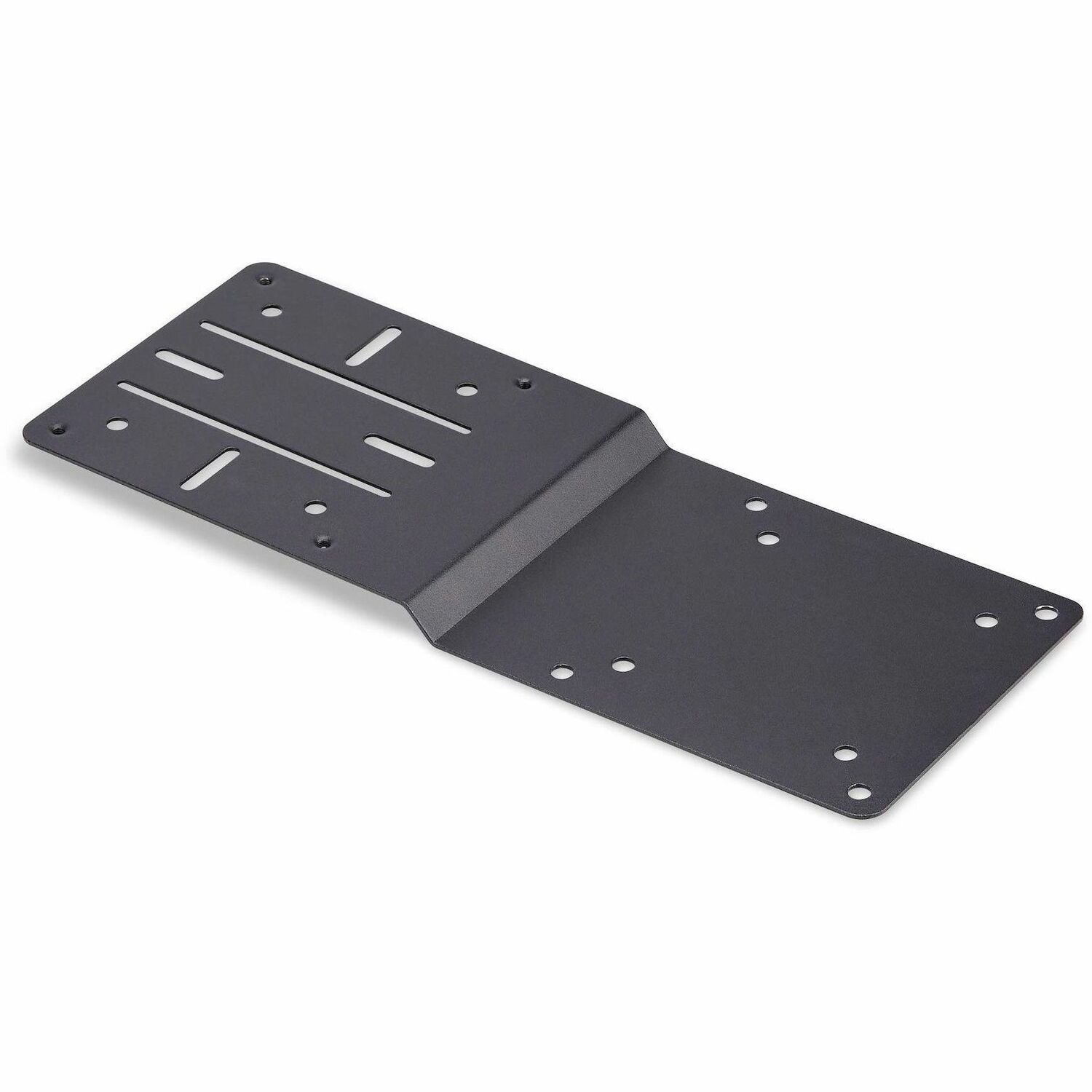

The integrated 2.5GbE port ensures high-speed data transfers and supports PXE Boot, Jumbo Frames, and Wake-on-LAN. Built-in lock slots and optional mounting solutions (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA) enhance the physical security of the docking station.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Wired
- Charging Capability
- Yes
- Device Supported
- Notebook
- Monitor
- Desktop PC
- Cable Length
- 3 ft
- Features
- LED Power Indicator
- Power Delivery Pass-through
- Management Features
- PXE Boot
- Wake-on-LAN
- Number of Displays Supported
- 3
- Screen Mode Supported
- 4K @ 60Hz
- 4K
- Supported Resolutions
- 3840 x 2160
- Maximum Data Transfer Rate
- 1.25 GB/s
- Security Slot Type
- Kensington Security Slot
- Noble Wedge Security Slot
- Nano Security Slot
- Network & Communication
- Ethernet Technology
- 2.5 Gigabit Ethernet
- Interfaces/Ports
- Host Interface
- USB 3.2 (Gen 2) Type C
- Total Number of USB Ports
- 7
- Number of USB 2.0 Ports
- 2
- USB Type-A
- Yes
- Number of USB 3.2 Gen 1 Type-A Ports
- 2
- Number of USB 3.2 Gen 2 Type-C Ports
- 2
- Number of USB Type-A Ports
- 4
- USB Type-C
- Yes
- USB Type-C Detail
- 1 x USB 3.2 Type-C with BC 1.2 (24 pin, Gen 1, 5Gbps, 18W Power), 1 x USB 3.2 Type-C (24 pin, Gen 2, 10Gbps), 1 x USB 3.2 Type-C (24 pin, Gen 2, 10Gbps, 7.5W Power, DP Alt-Mode Video)
- Number of USB Type-C Ports
- 3
- Network (RJ-45)
- Yes
- Number of RJ-45 Ports
- 1
- DisplayPort
- Yes
- Number of DisplayPorts
- 2
- Headphone/Microphone Combo Port
- Yes
- HDMI
- Yes
- Number of HDMI Ports
- 2
- USB Power Delivery
- 140W
- Software
- Operating System Supported
- Windows 10
- Windows 11
- Mac OS X 10.15 Catalina
- Mac OS X 11.0 Big Sur
- Mac OS X 12.0 Monterey
- Mac OS X 13.0 Ventura
- macOS 14
- macOS Sequoia 15
- Ubuntu 18.04
- Ubuntu 20.04
- Ubuntu 22.04
- Ubuntu 24.04
- ChromeOS
- macOS Sonoma
- Power Description
- Power Source Type
- Power Adapter
- Physical Characteristics
- Color Family
- Gray
- Product Color
- Space Gray
- Form Factor
- Desktop
- Height
- 1.46"
- Width
- 3.31"
- Weight (Approximate)
- 14.11 oz
- Miscellaneous
- Package Contents
- Docking Station
- 1 x 3ft (1m) USB-C Host Cable
- 1 x Universal Power Adapter
- 1 x Power Cable
- 1 x Product Documentation
- Kensington Security Slot
- Yes
- Compatibility
Apple MacBook Pro
- Brand Compatibility
- Apple
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- TAA Compliant
- Yes
