- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Product Type
- Video Extender Receiver

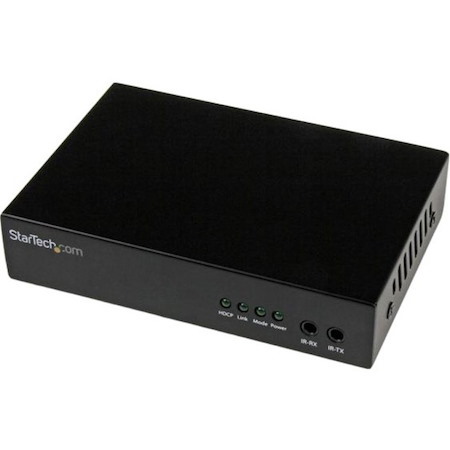

This HDBaseT receiver works with the ST424HDBT HDMI matrix switch to extend an HDMI audio/video source up to 230ft (70m) over Cat5e/6 cabling. One STHDBTRX receiver unit is required for each individual remote display.
Together with the ST424HDBT, the CAT5 HDMI receiver works to create a digital signage solution that eliminates the expense and hassle of running multiple devices with an HDMI matrix switch and extender in one clutter-free system. Because the signal is extended using standard Cat5e/6 Ethernet cables with RJ45 connectors, you can use your existing cabling infrastructure, without the additional cost of special cabling or connectors.
For remote source operation, the HDMI receiver can also extend an Infrared signal from a remote control to operate either the display or the video source from either side or system, using the included IR extender and receiver cables.
The STHDBTRX is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 230 ft
- Video
- Graphics Modes
- WUXGA
- Maximum Video Resolution
- 1920 x 1200
- Interfaces/Ports
- Network (RJ-45)
- Yes
- HDMI Out
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of HDMI Outputs
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 6
- Power Description
- Input Voltage
- 5 V DC
- Physical Characteristics
- Product Color
- Black
- Product Material
- Aluminum
- Receiver Height
- 0.90"
- Receiver Width
- 3"
- Receiver Depth
- 4.30"
- Length
- 4.3"
- Form Factor
- Desktop
- Transmitter Weight (Approximate)
- 7.60 oz
- Miscellaneous
- Package Contents
- 1 X Hdmi Receiver Unit
- 1 X Mounting Brackets
- 1 X Ir Kit (Transmitter/Receiver)
- 1 x Universal Power Adapter (NA/UK/EU/AUS)
- 1 X Quick Install Guide
- Certifications & Standards
- FCC
- CE
- Country of Origin
- China
- Environmentally Friendly
- Yes
