- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- A/V Cable

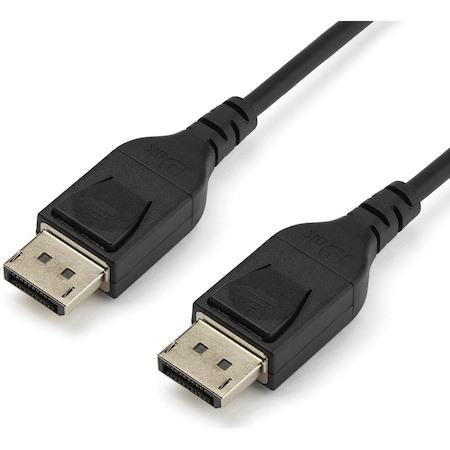

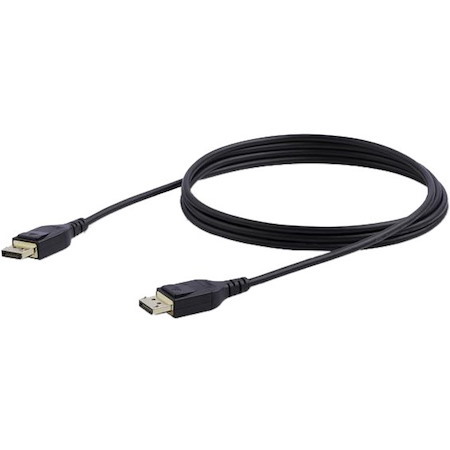

This DisplayPort 1.4 cable connects your DisplayPort™ laptop, Chromebook or desktop computer to a "super ultra-high definition" 8K monitor, TV or projector. It supports resolutions up to 8K (7680x4320) @ 60Hz.
The DisplayPort monitor cable provides the essential connection to support the next generation of super ultra-high definition video.
This cable is VESA® to ensure full compliance and efficient operation of the higher link rate of HBR3. It has been tested to meet all DP 1.4 specifications to ensure quality and reliability.
The Superior Performance of DisplayPort 1.4
This 8K DisplayPort cable supports all DP 1.4 features:
- High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the latest in industry standards
- High Dynamic Range (HDR) for higher contrast ratio and vivid colors
- Multi-Stream Transport (MST) for daisy-chaining multiple monitors
- Display Stream Compression 1.2 (DSC) for maximum resolution output
- Forward Error Correction to manage data transmission errors
- High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
- 32 Uncompressed Digital Audio Channels
Flexible Cable with Reliable Latched Connectors
The cable has a slim professional grade 34 AWG construction that allows for flexible installation while offering superior reliability for a clean quality installation. Each connector features latches that provide secure connections between your devices.
8K: Enabling Business Continuity
8K has a resolution of 7680 x 4320 and is also known as 4320p and Super Ultra High Definition (SUHD). It is seen in digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure.
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
DP14MM2M is backed by a StarTech.com lifetime warranty.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Cable Type
- DisplayPort
- Cable Length
- 6.56 ft
- Connector Type on First End
- DisplayPort 1.4 Digital Audio/Video - Male
- Connector Gender on First End
- Male
- Connector on First End Details
- 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
- Connector Type on Second End
- DisplayPort 1.4 Digital Audio/Video - Male
- Connector Gender on Second End
- Male
- Connector on Second End Details
- 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
- Connector Plating
- Nickel
- Gold
- Shielding
- Yes
- Jacket Type
- VW-1
- Device Supported
- Desktop Computer
- Monitor
- TV
- Projector
- Digital Signage Player
- American Wire Gauge
- 34 AWG
- Data Transfer Rate
- 32.4 Gbit/s
- Supported Resolution
- 7680 x 4320
- Features
- HDCP 2.2
- Display Stream Compression (DSC) 1.2
- Multi-Stream Transport (MST) Support
- EMI Protection
- Stress Resistant
- HDR Support
- Forward Error Correction (FEC) Support
- Locking Latch
- Fire Resistant
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Jacket Material
- Polyvinyl Chloride (PVC)
- Weight (Approximate)
- 0.56 lb
- Miscellaneous
- Environmentally Friendly
- Yes
- Country of Origin
- China
