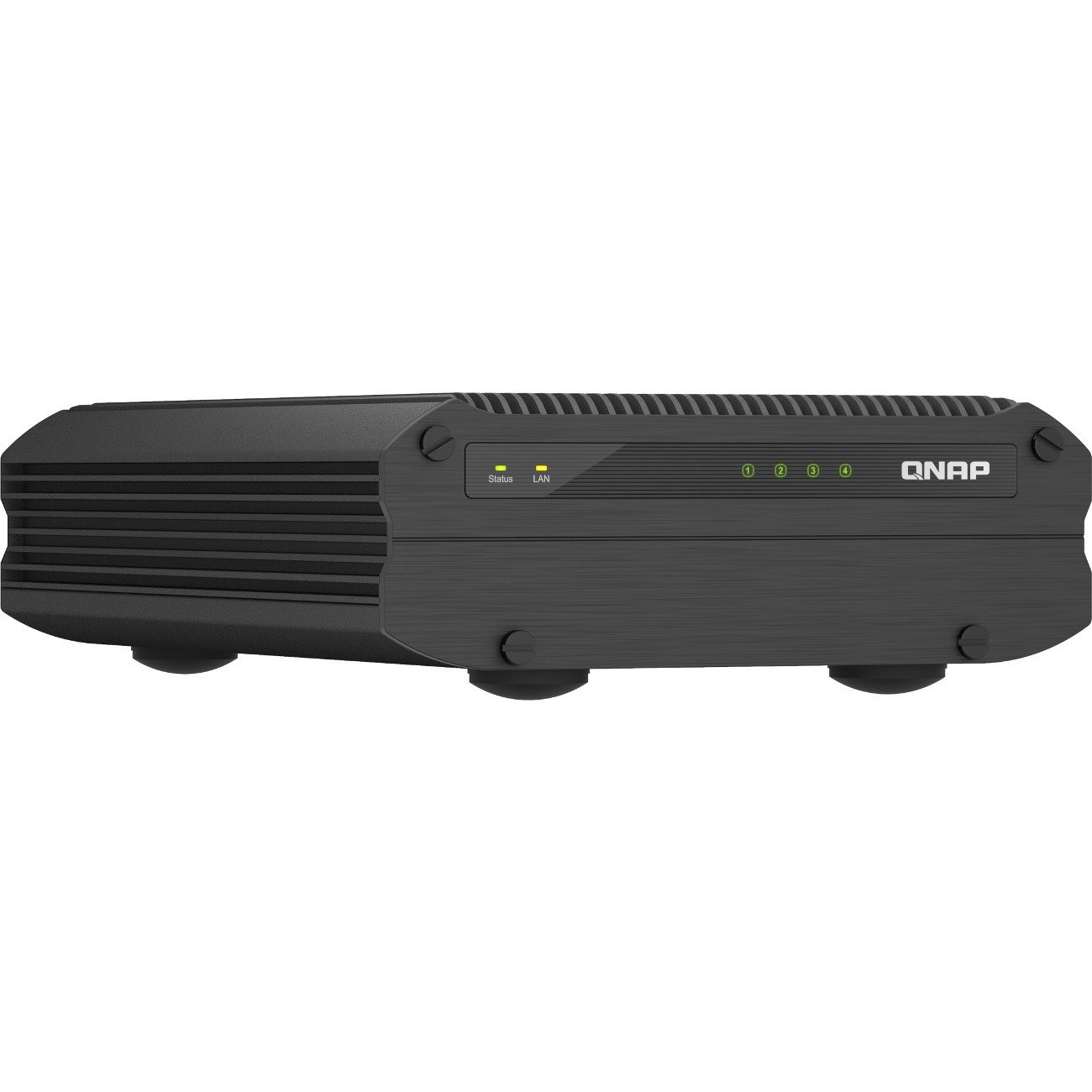

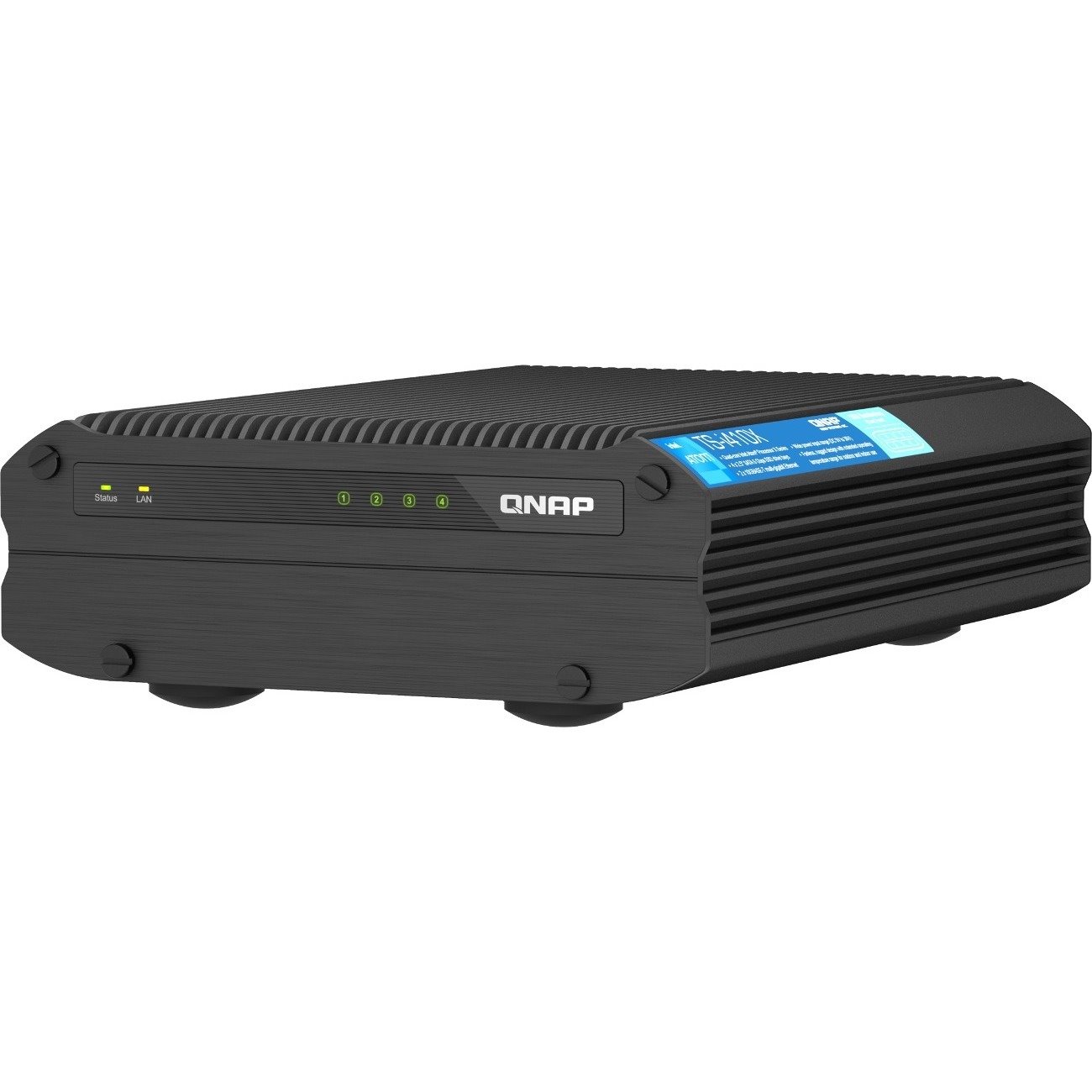

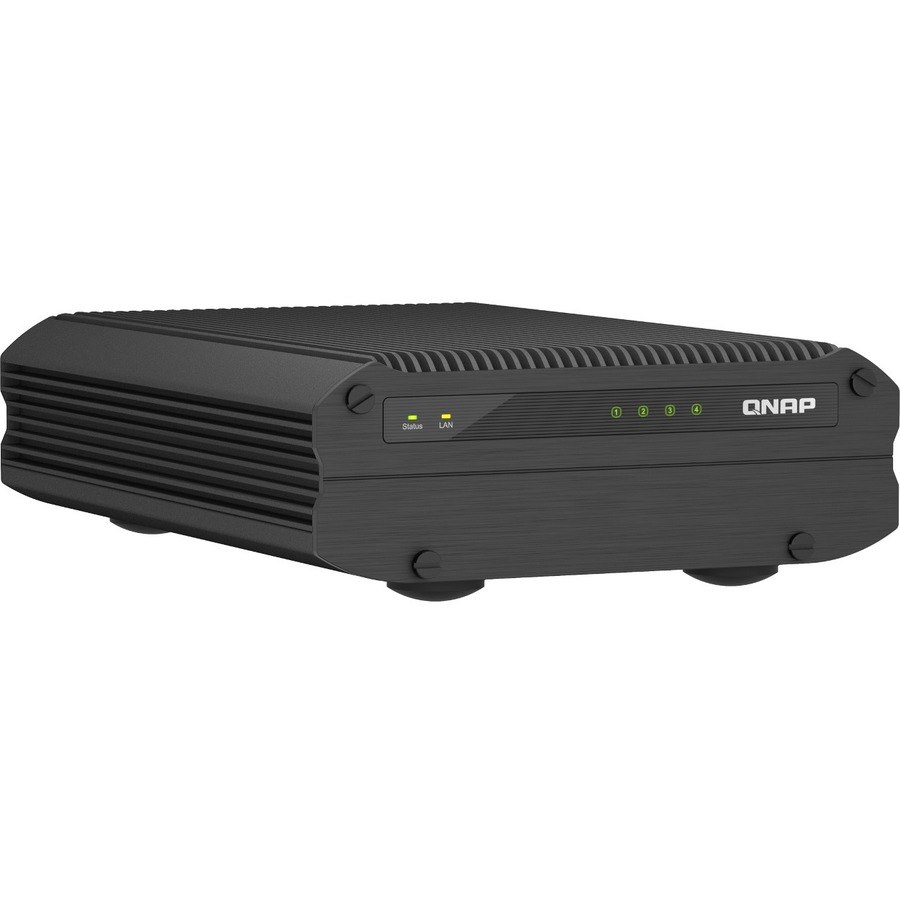

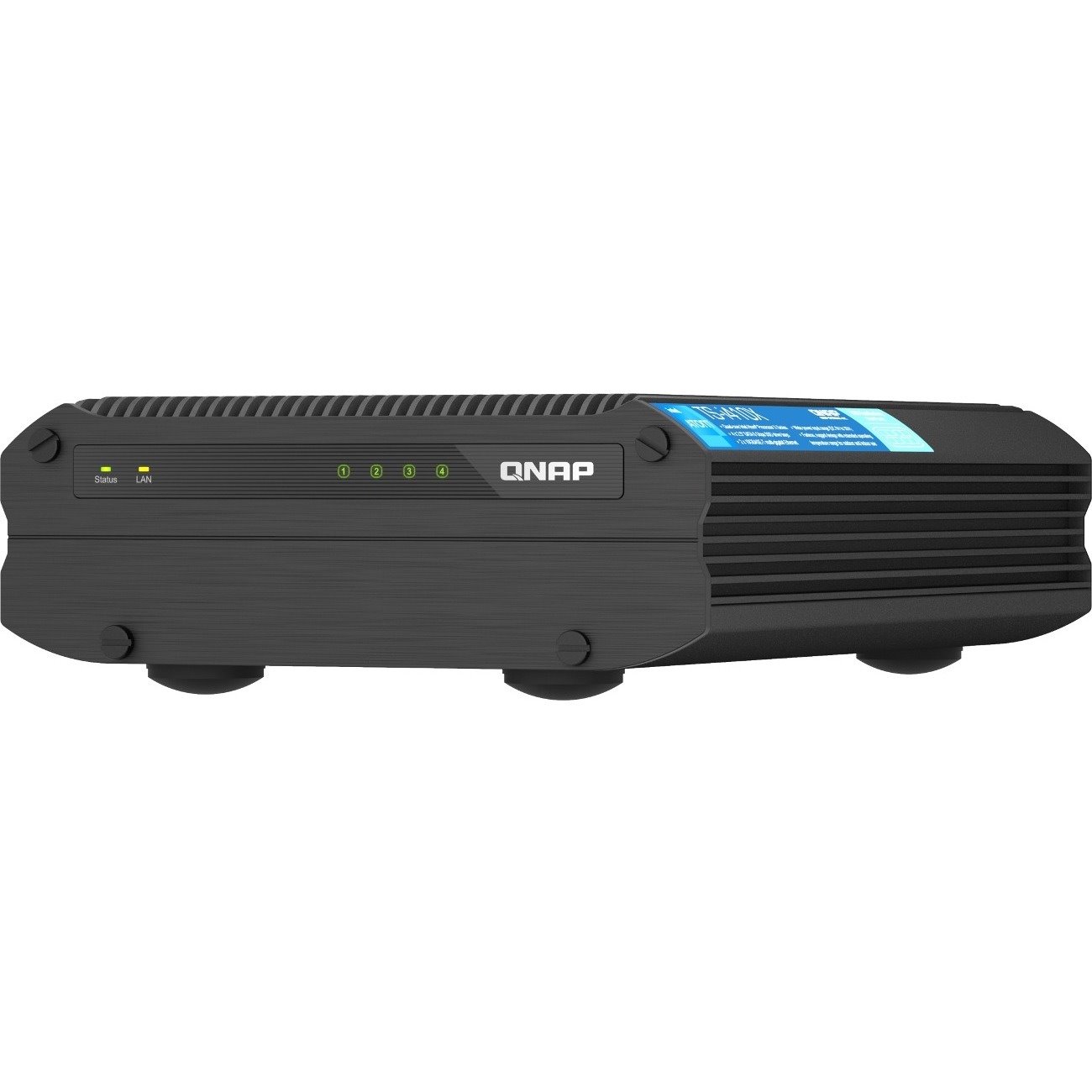

With a fanless design and rock-solid chassis, the TS-i410X industrial grade NAS is designed for harsh environments. The TS-i410X can operate in temperatures of -40 ~ 70 Celsius (-40°F ~ 158°F) while its 9V ~ 36V DC wide-range power supply is ideal for factories, warehouses, transportation, and other rugged operating environments.

• 10GbE connectivity

  Two 10GBASE-T/NBASE-T RJ45 ports accelerate virtualization tasks, high speed backup/recovery, file sharing, and video transmission.

• 4K HDMI output

  Supports 4K playback and real-time transcoding.

• Optimized SSD performance and lifespan

  Install SATA 6Gb/s SSDs and activate SSD caching for increased IOPS performance.

• Virtualization applications

  Host multiple virtual machines and containers to run a wide range of applications and microservices.

• Data backup and recovery

  Protect PC/Macs, virtual machines, software containers, and cloud data.

• Hybrid cloud applications

  Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.

Available Models | TS-i410X-8G

• Intel® Atom® x6425E 4-core/4-thread processor, burst up to 3.0 GHz, 8 GB on board (non-expandable)

Quad cores up to 3.0 GHz with AES-NI accelerated encryption

The TS-i410X is powered by Intel® Atom® x6425E quad-core processor (burst up to 3.0 GHz) and equipped with 8 GB dual-channel memory. With hardware-accelerated AES-NI encryption, the TS-i410X also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS. The TS-i410X has four 2.5-inch SATA 6Gb/s SSD slots for allocating SSDs (industrial SSDs are recommended) to greatly boost IOPS to meet the performance requirements of demanding applications.

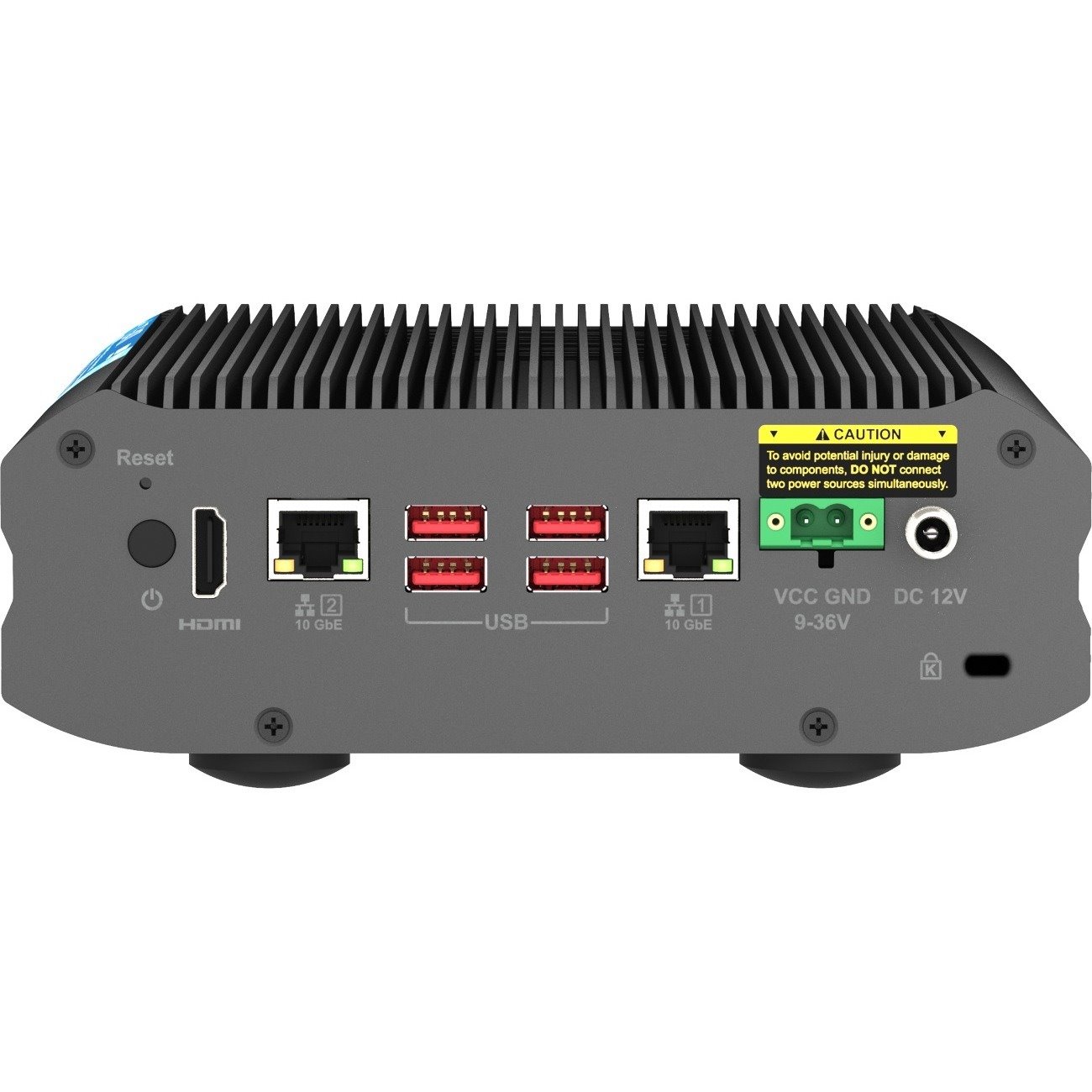

Industrial-grade hardened hardware design with 9V ~ 36V DC wide-range power supply

With a fanless design and rock-solid chassis and compliant with the military-grade MIL-STD-810H the TS-i410X can operate in -40 ~ 70 Celsius (-40°F ~ 158°F) environments. It can be used as a set-top box, or used with the optional VESA 75 wall-mount to provide installation flexibility. With the 9V ~ 36V DC wide-range power supply, the TS-i410X is suitable for industrial and transportation applications with a variety of input voltage requirements.

Use with industrial wide temperature SSDs

When using industrial wide temperature SSDs, adjust the disk warning setting to 85°C (185°F) in the Storage & Snapshots to match the upper limit of SSD operating temperature. (The default temperature is 70°C for SSDs)

• General Information
• • Manufacturer
  • QNAP Systems
  • Manufacturer Website Address
  • http://www.qnap.com
  • Brand Name
  • QNAP
  • Product Type
  • SAN/NAS Storage System

• Warranty
• • Limited Warranty
  • 3 Year
  • Additional Warranty Information

  • The TS-i410X is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
