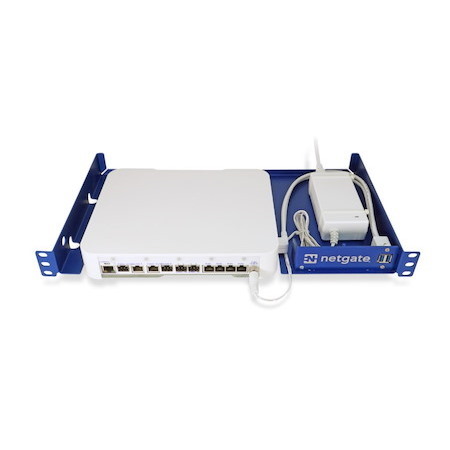

Netgate 8200 Firewall - Opensource

  • Part: 1523541
  • Model: Netgate-8200
$1,641.00

Availability

Out of Stock

The Netgate 8200 with pfSense® Plus software is ideal for remote office, small/medium business, edge deployments, and enterprise networks, looking for enterprise-class performance in a rack mount form-factor. The Netgate 8200 provides flexible port configurations to support 1 to 10 Gbps WAN capabilities across RJ45, SFP, and SFP+ ports, as well as 4 discrete, unswitched 2.5 Gbps LAN ports.

IPERF3 TRAFFIC

L3 Forwarding: 18.6 Gbps

Firewall: 18.55 Gbps

IPsec VPN: 3.24 Gbps
(AES-GCM-128  w/QAT)

IMIX TRAFFIC

L3 Forwarding: 11.76 Gbps

Firewall: 5.1 Gbps

IPsec VPN: 810 Mbps
(AES-GCM-128  w/QAT)

CPU: Intel® Atom® C3758R with QAT, 8-core @ 2.4 GHz

128GB NVMe M.2 SSD
16 GB DDR4 w/o ECC, single channel (soldered down)

Network Ports:

(2) 10 Gbps SFP+ cage WAN ports
(2) Auto media detect 1 Gbps (RJ-45 copper / SFP fiber) Combo WAN ports
(4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet LAN ports (Intel i226)
