- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/us/en/
- Brand Name
- Lenovo
- Packaged Quantity
- 1
- Product Type
- 40Gigabit Ethernet Card

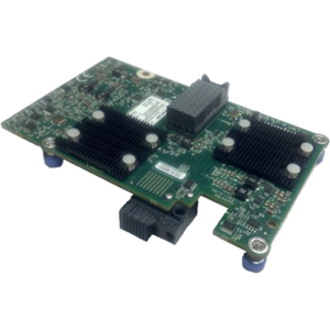

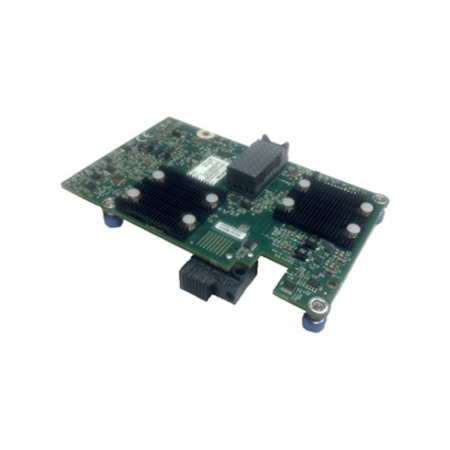

The IBM® Flex System™ IB6132D 2-port FDR InfiniBand Adapter is a two-port mid-mezzanine card for the IBM Flex System x222 Compute Node. It delivers low latency and high bandwidth for performance-driven server clustering applications in enterprise data centers, high-performance computing (HPC), and embedded environments. The adapter is designed to operate at InfiniBand FDR speeds (56 Gbps or 14 Gbps per lane) and provides one 56 Gbps port to each of the independent servers in the x222 Compute Node.
- Interfaces/Ports
- Host Interface
- PCI Express x8
- Total Number of Ports
- 2
- Network (RJ-45)
- No
- USB
- No
- Serial Port
- No
- Ethernet AUI
- No
- XJACK
- No
- PoE (RJ-45) Port
- No
- Network & Communication
- Network Technology
- 40GBase-X
- InfiniBand
- Yes
- Physical Characteristics
- Width
- 6.2"
- Depth
- 4.3"
- Weight (Approximate)
- 8.11 oz
- Miscellaneous
- Package Contents
- Flex System IB6132D 2-Port FDR InfiniBand Adapter
- Documentation CD
- The IBM Important Notices Document
- Device Supported
- Server
- Platform Supported
- PC
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
