The ThinkSystem Broadcom 57412 10GBASE-T Ethernet Adapters are four port 10 Gb Ethernet adapters that supports 10GBASE-T and 1000BASE-T Ethernet on Category 6 twisted-pair cables. They support networking virtualization technologies such as SR-IOV, VXLAN, and NVGRE. The 57412 10GBASE-T adapters are available in PCIe and OCP form factors.

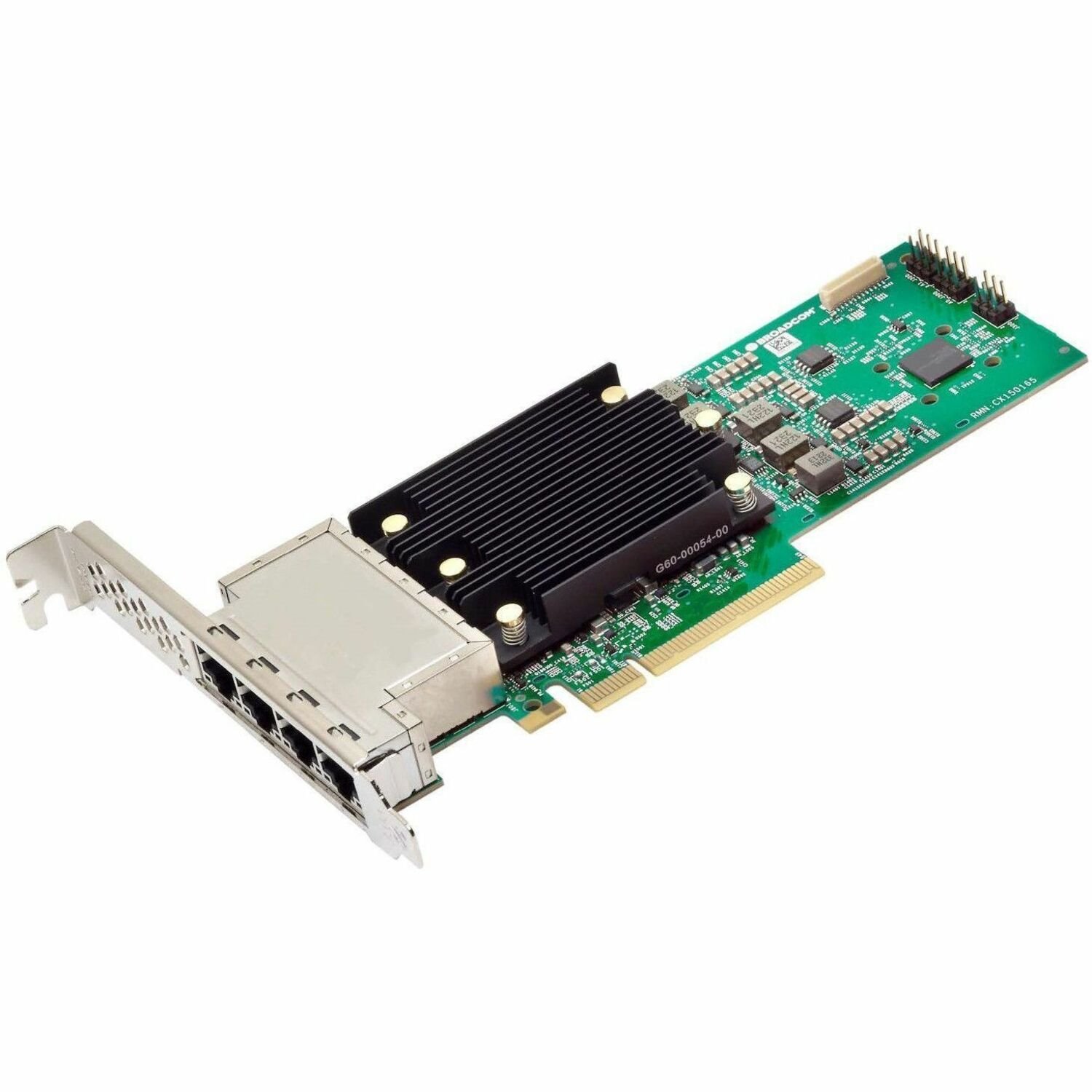

The following figure shows the ThinkSystem Broadcom 57412 10GBase-T 4-Port PCIe Ethernet Adapter.
- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com
- Brand Name
- Lenovo
- Product Line
- ThinkSystem
- Packaged Quantity
- 1
- Product Type
- 10Gigabit Ethernet Adapter
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Chipset Manufacturer
- Broadcom
- Chipset Model
- 57412
- Features
- Single Root I/O Virtualization (SR-IOV)
- Virtual Extensible LAN (VXLAN)
- Network Virtualization using Generic Routing Encapsulation (NVGRE)
- Transmit Side Scaling (TSS)
- Receive Side Scaling (RSS)
- TCP Segmentation Offload (TSO)
- Large Receive Offload (LRO)
- Large Send Offload (LSO)
- User Datagram Protocol (UDP)
- IPv4
- IPv6
- VLAN Support
- UEFI Support
- PXE Support
- Extended Message-Signaled Interrupts (MSI-X)
- Interfaces/Ports
- Host Interface
- PCI Express 3.0 x8
- Total Number of Ports
- 4
- Number of Network (RJ-45) Ports
- 4
- Media & Performance
- Media Type Supported
- Twisted Pair
- Network & Communication
- Network Technology
- 10GBase-T
- 1000Base-T
- Physical Characteristics
- Form Factor
- Plug-in Card
- Bracket Height
- full-height, low-profile
- Width
- 2.99" (76 mm)
- Depth
- 4.53" (115 mm)
- Miscellaneous
- Package Contents
- ThinkSystem 10Gigabit Ethernet Adapter
- PCIe Adapter
- Documentation Flyer
- Application/Usage
- Network
- Device Supported
- Server
