- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Lantronix
- Product Series
- M/GE-T
- Product Type
- Transceiver/Media Converter

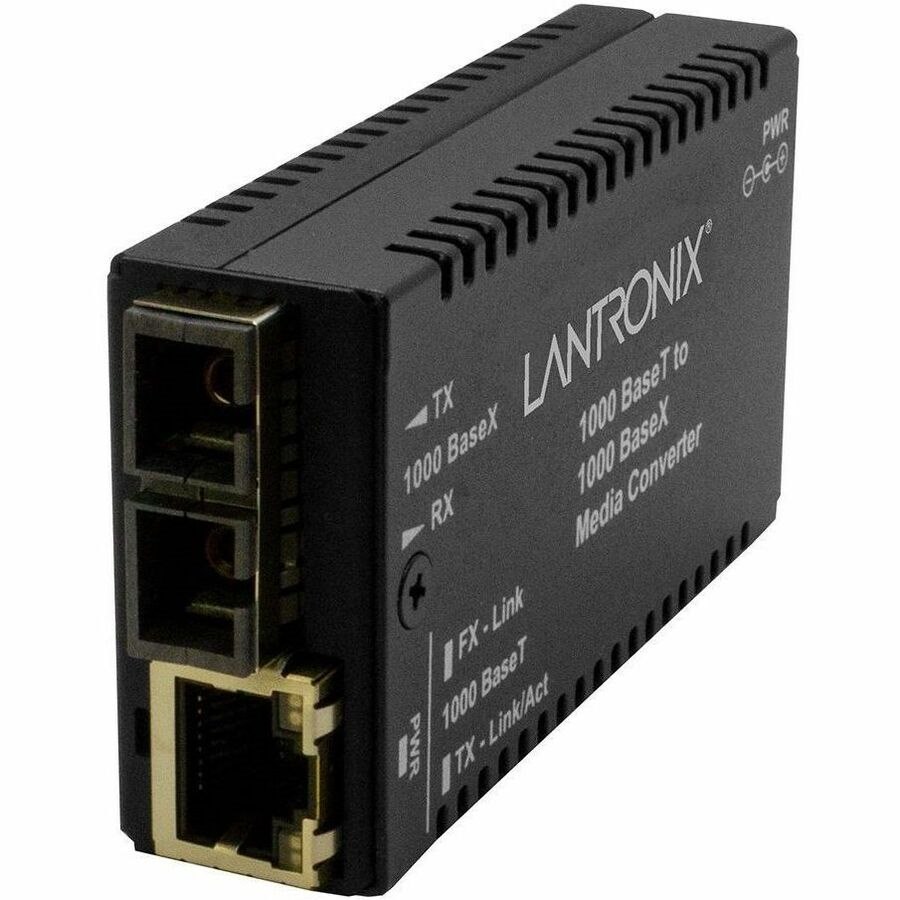

Mini Gigabit Ethernet Media Converter
1000Base-T to 1000Base-SX/LX
The M/GE-T Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of SC Ports
- 1
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Cable Wavelength
- 850 nm
- Maximum Data Transfer Rate
- 1000 Mbit/s
- Maximum Distance Supported
- 0.55 km
- Fiber Optic Cable Core/Cladding Specification
- 62.5/125 µm
- 50/125 µm
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 1000Base-T
- 1000Base-SX
- Power Description
- Power Source
- AC/DC
- Input Voltage
- 12 V DC
- Power Consumption
- 2.60 W
- Physical Characteristics
- Form Factor
- Wall Mountable
- DIN Rail Mountable
- Rack-mountable
- Standalone
- Height
- 0.9"
- Width
- 1.8"
- Depth
- 3.3"
- Weight (Approximate)
- 2 lb
- Miscellaneous
- Package Contents
- M/GE-T-SX-01 Transceiver/Media Converter
- Power Supply - Australia
- Application/Usage
- Data
- Network
- Additional Information
- 1000Base-T (RJ-45) [100m/328 ft.] to 1000Base-SX 850nm multimode (SC)[62.5/125 µm fiber: 220 m/722 ft.] [50/125 µm fiber: 550 m/1804 ft.] Link Budget: 7.0 dB
- Certifications & Standards
- Safety: Wall Mount Power Supply, UL Listed, cUL Listed (Canada), FCC Class A, CISPR22 / EN55022 Class A, EN55024, CE Mark
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- TAA Compliant
- Yes
- NDAA Compliant
- Yes
