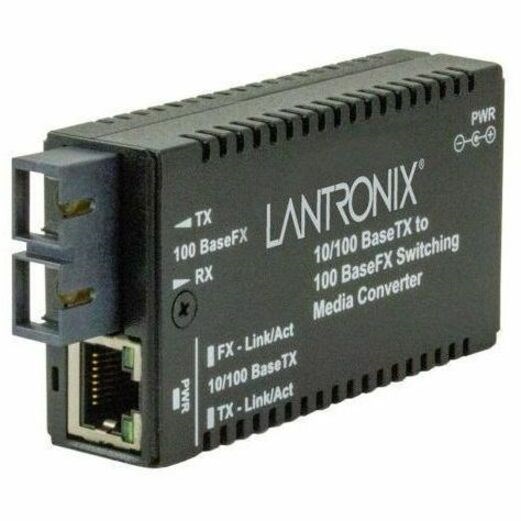

Mini Fast Ethernet Media Converter
10/100Base-TX to 100Base-FX
The M/E-PSW Series is a Fast Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.
- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Lantronix
- Product Series
- M/E-PSW
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of SC Ports
- 1
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Fiber Mode Supported
- Single-mode
- Fiber Optic Cable Wavelength
- 1310 nm
- Maximum Data Transfer Rate
- 100 Mbit/s
- Maximum Distance Supported
- 20 km
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 10/100Base-TX
- 100Base-FX
- Power Description
- Power Source
- AC/DC
- Input Voltage
- 7.5 V DC
- 13.9 V DC
- Power Consumption
- 2.60 W
- Physical Characteristics
- Form Factor
- Standalone
- Rack-mountable
- Wall Mountable
- DIN Rail Mountable
- Height
- 0.9"
- Width
- 1.8"
- Depth
- 3.3"
- Weight (Approximate)
- 2 lb
- Miscellaneous
- Package Contents
- M/E-PSW-FX-02(SM) Transceiver/Media Converter
- DIN Rail Clip and Velcro
- Power Supply - South Africa
- Application/Usage
- Network
- Data
- Additional Information
- 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1310nm single mode (SC)[20 km/12.4 mi.] Link Budget: 16.0 dB
- Certifications & Standards
- Safety: Wall Mount Power Supply: UL Listed, cUL Listed (Canada) FCC Class A, CISPR22/EN55022 Class A, EN55024, CE Mark
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- TAA Compliant
- Yes
- NDAA Compliant
- Yes
