- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Lantronix
- Product Series
- SGFEB
- Product Type
- Transceiver/Media Converter

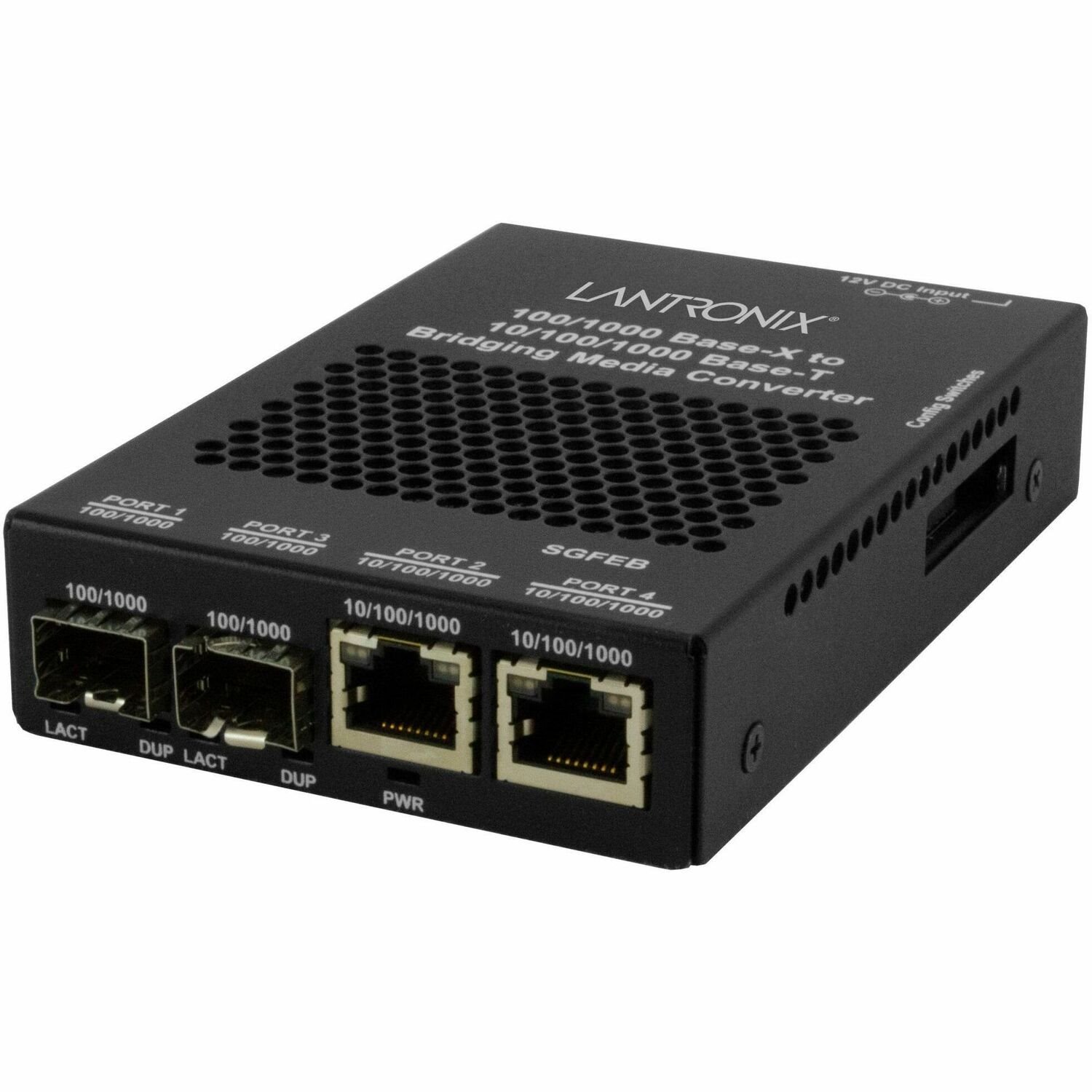

Stand-alone Gigabit Ethernet Media and Rate Converter
10/100/1000Base-T to 1000Base-SX/LX
The SGFEB Series is a stand-alone media converter that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 2
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Maximum Data Transfer Rate
- 1000 Mbit/s
- Maximum Distance Supported
- 0.10 km
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 2
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 100/1000Base-X
- Power Description
- Power Source
- AC Adapter
- Input Voltage
- 7.5 V DC
- 24 V DC
- Power Consumption
- 2.20 W
- Physical Characteristics
- Form Factor
- Wall Mountable
- Rail-mountable
- Rack-mountable
- Standalone
- Height
- 1"
- Width
- 3.3"
- Depth
- 4.8"
- Weight (Approximate)
- 2 lb
- Miscellaneous
- Package Contents
- SGFEB1040-330 Transceiver/Media Converter
- Power Supply - Latin America
- Application/Usage
- Data
- Network
- Additional Information
- (2) Port 10/100/1000Base-T (RJ-45) [100 m/328 ft.] to (2) Ports 100/1000Base-X SFP Slot (empty)
- Certifications & Standards
- EN55022 Class A, EN55024, FCC Class A, CE Mark Safety: Wall Mounted Power Supply: UL Listed, UL60950 and CSA Certified
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- TAA Compliant
- Yes
- NDAA Compliant
- Yes
