- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Transition Networks
- Product Type
- Transceiver/Media Converter

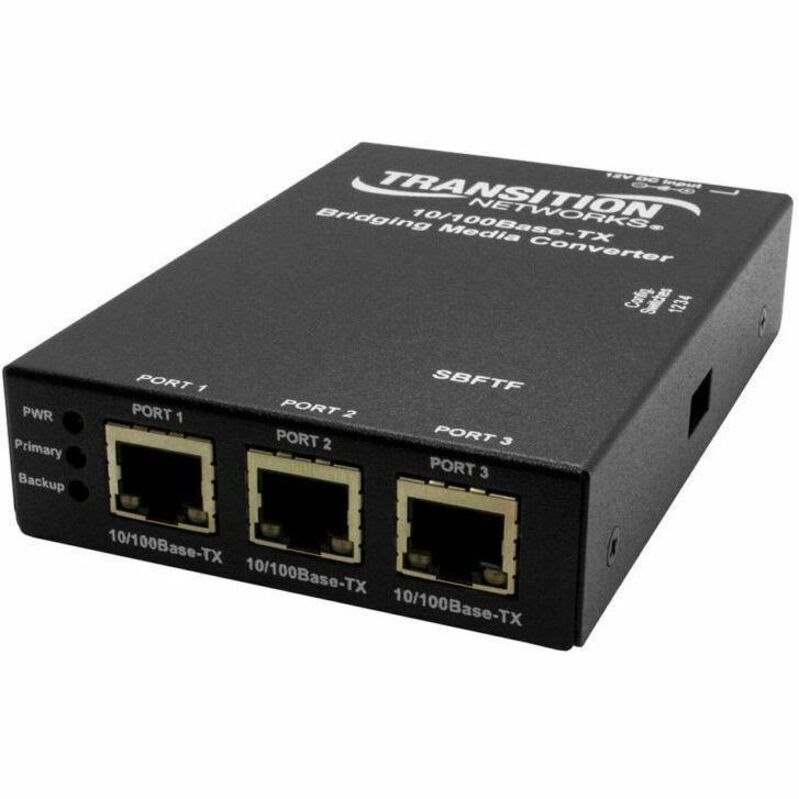

Stand-alone Fault-Tolerant Redundant Link Protector
10/100Base-TX
The SBFTF1010-130 Redundant Link Protector is a 10/100 Ethernet fault-tolerant transceiver that significantly reduces network down time by adding a new level of redundancy to 10/100 Ethernet connections. The Redundant Transceiver has three ports: one for the critical (main) device, one for the default (primary) path to the critical device, and another (backup) for the backup path. It is a smart device that will not send any signal on a path that is inactive. If the primary path loses its link, then the transceiver will switch to the backup path in approximately 189 milliseconds.
When the primary path re-establishes its link, the Redundant Link Protector will automatically switch back to the primary path. Optional functionality, controlled via a dip switch, allows the unit to move from the fault-tolerant mode to a 3-port switch mode.
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 3
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 3
- Media & Performance
- Media Type Supported
- Twisted Pair
- Maximum Data Transfer Rate
- 100 Mbit/s
- Maximum Distance Supported
- 0.10 km
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 10/100Base-TX
- Power Description
- Power Source
- Power Supply
- Input Voltage
- 230 V AC
- 120 V AC
- Power Consumption
- 2.40 W
- Physical Characteristics
- Form Factor
- Standalone
- Rack-mountable
- Wall Mountable
- DIN Rail Mountable
- Shelf Mount
- Height
- 1"
- Width
- 3.3"
- Depth
- 4.8"
- Weight (Approximate)
- 2 lb
- Miscellaneous
- Package Contents
- SBFTF1010-130 Transceiver/Media Converter
- Power Supply - Brazil
- Application/Usage
- Data
- Network
- Additional Information
- 10/100Base-TX Link Protector Transceiver (3) 10/100Base-TX (RJ-45) [100 m/328 ft.]
- Certifications & Standards
- Safety: Wall Mount Power Supply: UL Listed & CSA certified; FCC Class A, EN55024, EN61000, CE Mark
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- TAA Compliant
- Yes
- NDAA Compliant
- Yes
