• General Information
• • Manufacturer
  • Kramer Electronics LTD
  • Manufacturer Website Address
  • http://www.kramerelectronics.com
  • Brand Name
  • Kramer
  • Product Type
  • Video Switchbox

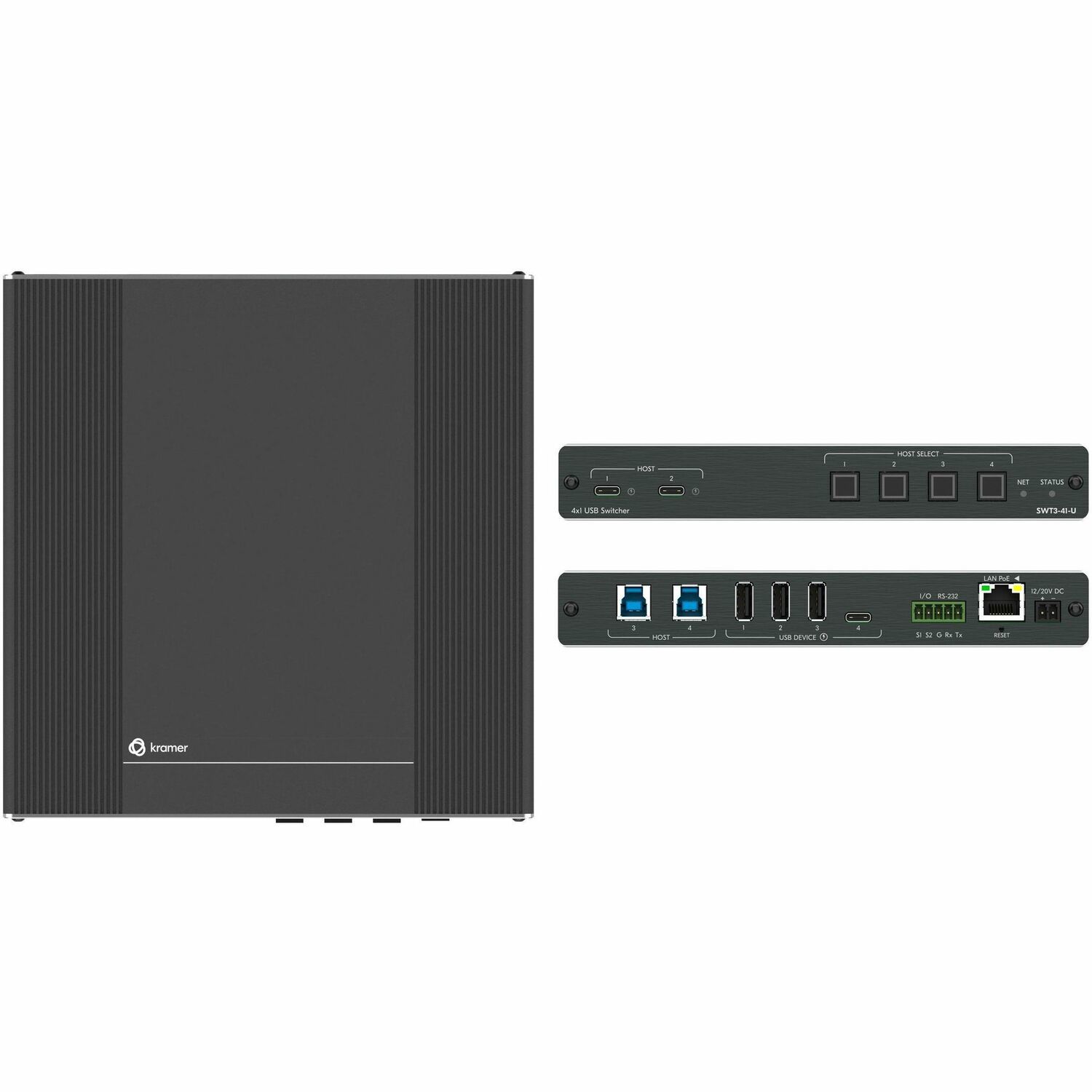

SWT3-41-U is a high-performance switcher with two USB-C and two USB-B ports for USB host devices connection and plug and play host user auto-switching experience based on active USB signal detection. The four connected USB peripherals, such as a room camera and microphone, are switchable for use of the active USB host, for convenient online meeting participants operation.

• Collaborative Online-meeting Switching - Controllable switching of online-session USB host participants and space-deployed visual (such as camera) and audible (such as microphones or headsets) USB peripherals, allows collaborative online meeting and smooth content sharing operation among online meetings participants.
• BYOD Ease and Convenience: - Connect any USB-C device as an online meeting participant, while providing the connected device with multiple concurrent capabilities of USB 3.1 and Ethernet connection, USB-driven content sharing, and (if PD-2.0-capable) up to 60 watts of power, all via a single USB-C cable connection only.
• USB 3.2 Switching: - USB 3.2 signals switching, enables high data-rate connection between active USB host and space USB devices, such as 4K camera, high-quality audio devices, and HID (Human Interface Devices) mouse or keyboard devices.
• Auto Switcher Ease of Use: - Automatically connects the plugged host to the space connected USB peripherals, according to user-configured preferences, such as last-connected host.
• Simple and Flexible Control - Remote IP-controller connection, browser operation webpage, local panel buttons, and remotely connected contact-closure buttons triggering configurable operation functions, for easy and fully flexible USB host ports selection, and switcher control.
• Built-in Intelligent Control Gateway - Remote IP-driven intelligent control of connected USB and sensor devices via RS-232 or I/O. Eliminating the need for an external control gateway, this feature reduces installation complexity and costs, to enable easy integration with control systems, such as Kramer Control.
• Secured Operation: - Standard IT-grade 802.1x authentication for secured IT LAN connectivity operation.
• Comprehensive and Cost-effective Management - Local panel indication LEDs to facilitate easy local maintenance and troubleshooting. Remote IP-driven device firmware upgrade and management, via user-friendly embedded web pages and optional whole site management system, ensure lasting and field proven deployment.
• Easy and Elegant Installation: - PoE powering via LAN port connection, and MegaTOOLS™ fan-less enclosure for desktop, under table or dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter, for easy switcher deployment.
• Spec sheet
• Print this page

Applications

• Enterprise and education online meeting rooms.
• Upgrade AV meeting rooms to hybrid meeting rooms.
• Any solution with flexible connection of multiple USB hosts and space peripherals.
