Aruba CX 8360 Switch Series

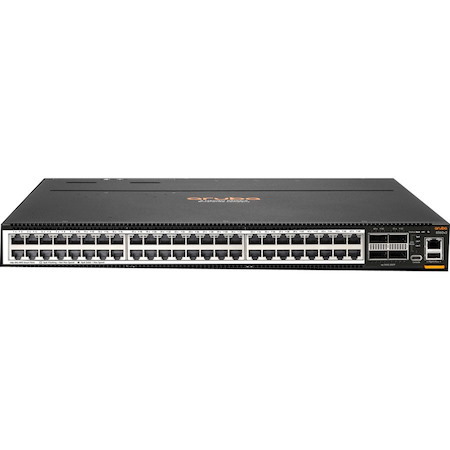

The Aruba CX 8360-48Y6C v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps.
The 8360-48Y6C v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports.
In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.
- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Series
- CX 8360
- Product Type
- Ethernet Switch
- Interfaces/Ports
- Total Number of Network Ports
- 48
- Uplink Port
- Yes
- Modular
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 48 x 10 Gigabit Ethernet Network
- 4 x 100 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Ethernet Technology
- 10 Gigabit Ethernet
- 100 Gigabit Ethernet
- Network Technology
- 10GBase-T
- 100GBase-X
- I/O Expansions
- Total Number of Expansion Slots
- 4.0
- Expansion Slot Type
- QSFP28
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.1Qbb
- IEEE 802.3ad
- IEEE 802.1ab
- IEEE 802.1Q
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.1ae
- IEEE 802.1AEbn
- IEEE 802.1AEbw
- IEEE 802.1ak
- IEEE 802.1AX
- IEEE 802.1t
- IEEE 802.1v
- IEEE 802.3ae
- IEEE 802.3an
- IEEE 802.3ba
- IEEE 802.3by
- IEEE 802.3cc
- IEEE 802.3z
- Management & Protocols
- Manageable
- Yes
- Power Description
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Number of Power Supplies Supported
- 2
- Power Consumption
- 500 W
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.4"
- Depth
- 16"
- Weight (Approximate)
- 18.85 lb
- Miscellaneous
- TAA Compliant
- Yes
