- General Information
- Manufacturer
- Hikvision
- Manufacturer Website Address
- http://www.hikvision.com
- Brand Name
- Hikvision
- Product Type
- Ethernet Switch

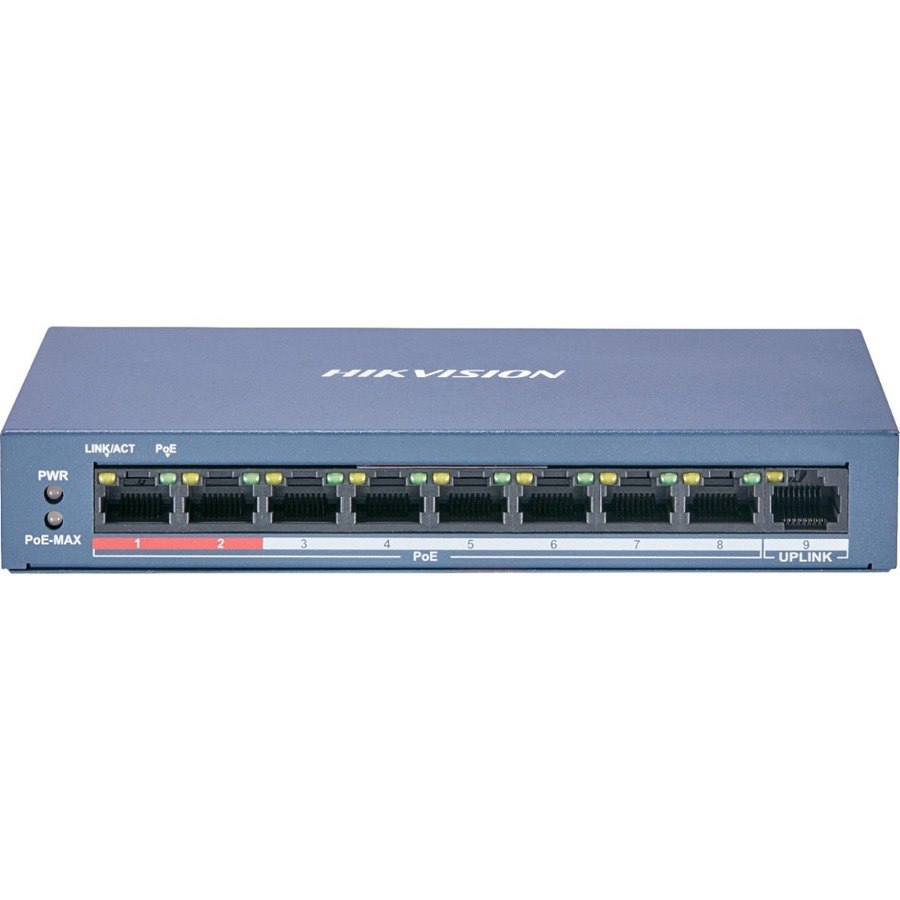

DS-3E0109P-E/M(B) is a layer 2 100M PoE switch. Based on wirespeed forwarding, the switch supports Ethernet PoE power supply and extend mode. The power supply distance reaches as long as 250 m. It also supports prior and stable transmission of the important surveillance area video when connected to the high priority ports.
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Uplink Port
- Yes
- Port/Expansion Slot Details
- 8 x Fast Ethernet PoE
- 1 x Fast Ethernet Network
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 10/100Base-TX
- Network & Communication
- Layer Supported
- 2
- Management & Protocols
- Manageable
- No
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 60 W
- Power Source
- Power Adapter
- Physical Characteristics
- Height
- 1.09" (27.60 mm)
- Depth
- 3.67" (93.10 mm)
- Length
- 6.69" (170 mm)
- Weight (Approximate)
- 12.35 oz (350 g)
