- General Information
- Manufacturer
- EnGenius Technologies, Inc
- Manufacturer Website Address
- http://www.engeniustech.com
- Brand Name
- EnGenius
- Packaged Quantity
- 1
- Product Type
- PoE Injector

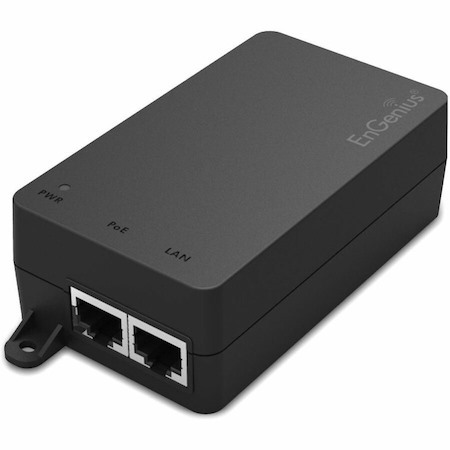

The EnGenius EPA5060XBT PoE Injector delivers 60-watts of power and 10Gb data communication to compatible network devices up to 328 feet (100m) over Cat5e cable. Compact design with IEEE802.3bt compliance offers easy installation while providing built-in power protection to preserve valuable equipment.
- IEEE 802.3bt Type 3 compliant
- IEEE 802.3af/at backward compatible
- Backward compatible for legacy PoE
- Supports 10/100/1000 Mbps and 1Gb/2.5Gb/10Gb applications
- Output power up to 60W over four pairs with auto-detection on power requirement
- Leverage energy efficient PoE up to 60W with full power capabilities mount use
- Fan-less design ideal for silent operation
- Simple plug-and-play installation
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Minimum Input Current
- 750 mA
- Maximum Input Current
- 1.12 A
- Maximum Output Power
- 60 W
- Interfaces/Ports
- Input Ports
- 1 x 10 Gigabit Ethernet
- Output Ports
- 1 x 10 Gigabit Ethernet
- Physical Characteristics
- Height
- 1.3"
- Width
- 2.3"
- Length
- 3.9"
- Weight (Approximate)
- 7 oz
- Miscellaneous
- Certifications & Standards
- IEC 62328-1: 2014
- UL 62328-1
- FCC Subpart 15 Class B
- EN 55032: 2012 / CA: 2013
- EN 55024: 2010
