- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Line
- Smart App Online
- Product Type
- Isolation/Step-Down Transformer

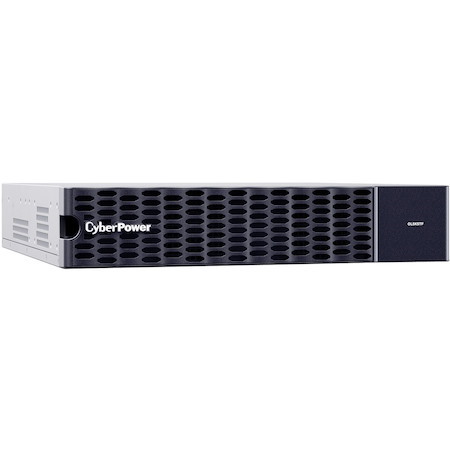

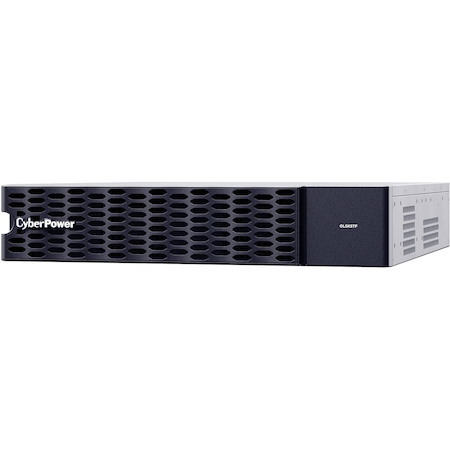

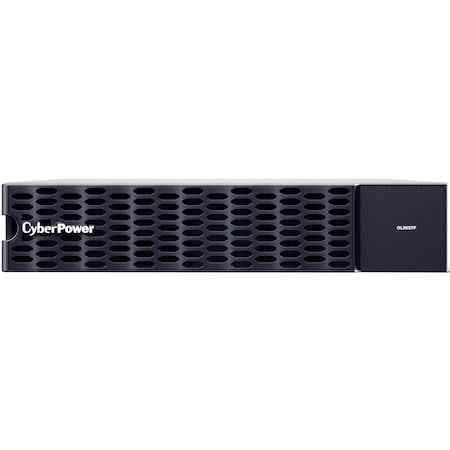

The CyberPower Smart App Online OL5KSTF rack/tower step-down isolation transformer converts 208 V input voltage originating from utility power, a UPS, or a generator to 120 V output.

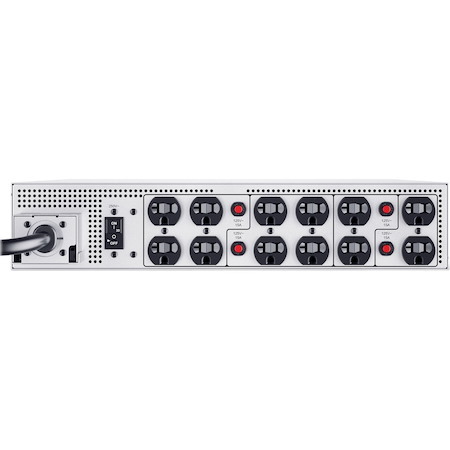

The OL5KSTF has a capacity of 5,000 VA / 5,000 Watts. It features twelve (12) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords.
Over temperature protection safeguards your OL5KSTF from damage if the internal heat exceeds safe operating parameters. A Three-Year Warranty ensures that this step-down transformer has passed our highest quality standards in design, assembly, material or workmanship.- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Power Rating
- 5000 VA
- Input Receptacle Type
- NEMA L6-30P
- Output Receptacle Type
- NEMA 5-20R
- Output Receptacle Detail
- 12 x NEMA 5-20R
- Cord Length
- 36"
- Power Description
- Input Voltage
- 230 V AC
- Output Voltage
- 120 V AC
- 208 V AC
- Maximum Line Current
- 30 A
- Physical Characteristics
- Color Family
- Silver
- Product Color
- Silver
- Form Factor
- Rack-mountable
- Rack Height
- 2U
- Height
- 3.4"
- Width
- 17"
- Depth
- 23.6"
- Weight (Approximate)
- 83.80 lb
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Miscellaneous
- Additional Information
- Current Rating : 30 A
- Over Temperature Protection : Yes
- UPS Topology : Step-Down Transformer
- Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.64 x 59.94 (cm)
- Physical Dimensions - (WxHxD) (in) : 17 x 3.4 x 23.6 (in)
- Physical Dimensions - (WxHxD) (mm) : 432 x 86 x 599 (mm)
- Weight (kg) : 38.01
- Weight (lb) : 83.8
- Shipping Dimensions - (WxHxD) (cm) : 59.94 x 33.02 x 89.92 (cm)
- Shipping - Dimensions (WxHxD, in) : 23.6 x 13.0 x 35.4 (in)
- Shipping - Dimensions (WxHxD, mm) : 599.44 x 330.2 x 899.16 (mm)
- Shipping - Weight (kg) : 52.48
- Shipping - Weight (lb) : 115.7
- Cord Length : 3 ft (0.9 m)
- Input Frequency Range : 50 Hz - 60 Hz
- Input Plug Type : Hardwire Terminal (NEMA L6-30P power cord included)
- Maximum Input Current : 30A
- Nominal Input Voltage : 208 VAC
- Nominal Output Voltage : 120 VAC
- Outlets - Total : 12
- Outlet Type COMPUTED : 12 - NEMA 5-20R
- Output Frequency : 50/60 Hz (auto-sensing/configurable)
- Overload Protection : Circuit Breaker Protected
- Step Down Thermal Dissipation : 954 BTU/hr
- USB Charge Port : No
- VA : 5000 VA
- Watts : 5000 W
- Color : Silver
- Form Factor : Rackmount
- Material of Construction : Metal
- Mounting Hardware : Yes
- Rack Height : 2U
- Audible noise at 1m from surface of unit : 58 dBA
- Operating Elevation : 0 - 10000 ft (0 - 3048 m)
- Operating Relative Humidity : 0 - 90 % (non-condensing)
- Operating Temperature : 32 - 104 °F (0 - 40 °C)
- Storage Elevation : 0 - 50000 ft (0 - 15239 m)
- Storage Relative Humidity : 0 - 95% (non-condensing)
- Storage Temperature : -4 - 113 °F (-20 - 45 °C)
- Models : OL3000RTXL2UHV, OL5KRTHD, OL6KRT, OL6000RT3UPDU, OL6KRT3UHW, OL6KRTHD, OL6KRTHW, OL6KRTMB, OL8000RT3U, OL8000RT3UPDU, OL8KRT3UHW, OL8KRTHW, OL8KRTMB, OL10000RT3U, OL10000RT3UPDU, OL10KRT3HW, OL10KRTHW, OL10KRTMB
- UPS Models : OL3000RTXL2UHV, OL5KRTHD, OL6KRT, OL6000RT3UPDU, OL6KRT3UHW, OL6KRTHD, OL6KRTHW, OL6KRTMB, OL8000RT3U, OL8000RT3UPDU, OL8KRT3UHW, OL8KRTHW, OL8KRTMB, OL10000RT3U, OL10000RT3UPDU, OL10KRT3HW, OL10KRTHW, OL10KRTMB
- Environmental : RoHS Compliant
- Safety : UL1778 5th Ed.
- Extended Warranty Option : WEXT5YR-ACC2C
- Product Warranty : 3 Year Limited Warranty
- Package Contents
- Smart App Online OL5KSTF 5000VA Isolation/Step-Down Transformer
- NEMA L6-30P Power Cord
- Compatibility
CyberPower UPS's:
- OL3000RTXL2UHV
- OL5KRTHD
- OL6KRT
- OL6000RT3UPDU
- OL6KRT3UHW
- OL6KRTHD
- OL6KRTHW
- OL6KRTMB
- OL8000RT3U
- OL8000RT3UPDU
- OL8KRT3UHW
- OL8KRTHW
- OL8KRTMB
- OL10000RT3U
- OL10000RT3UPDU
- OL10KRT3HW
- OL10KRTHW
- OL10KRTMB
- Certifications & Standards
- UL1778 5th Ed.
- CSA C22.2 No.107.3-05
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
