- General Information
- Manufacturer
- Creative Technology, Ltd
- Manufacturer Website Address
- http://www.creative.com
- Brand Name
- Sound Blaster
- Product Type
- Sound Board

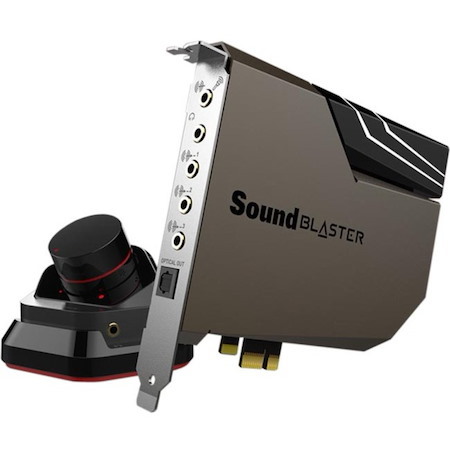

Featuring pristine audio fidelity alongside Sound Blaster's audio processing legacy, the AE-7 takes the audio game up a notch and will awe you with its audiophile-grade components with playback exceeding massively popular desktop amps and DACs.
DAC
Hi-res ESS SABRE-class 9018 with incredibly clean 127 dB DNR audio stream
THD + N
Up to -120 dB, 0.0001%
Playback Capability
Clear, pristine audio at 32-bit / 384 kHz PCM and DSD64 Playback
Headphone Amp
Ultra-low 1Ω headphone output impedance, supports 16Ω to studio-grade headphones of up to 600Ω, including high-end planar-magnetic headphones
Surround Sound and Encoding
5.1 discrete surround for speakers, 7.1 virtual surround for headphones, Dolby Digital Live, DTS Connect Encoding, and Sound Blaster Surround Virtualization
Convenience
Audio Control Module - perfect for quick access to volume control knob, 6.3 mm and 3.5 mm mic and headphones I/O connectors. Also fitted with a built-in mic array for hassle-free communications
Audio Enhancements
Full suite of audio enhancements including customizable EQs and Sound Profiles, Surround, Crystalizer, Bass, Smart Volume, and Dialog Plus that further boosts your audio. For gamers, Scout Mode is a feature not to be missed!
Customization
New and improved Sound Blaster Command software for further audio customization, with a quick on and off toggle switch to activate or deactivate audio processing effects
Audio
Hardware Accelerated Audio
The addition of AE-7 to your PC rig basically means one thing - you're adding in a dedicated quad-core processor designed with one goal in mind - to deliver incredibly pristine and enhanced sound on your PC without overstressing your CPU. Sound Blaster handles audio processing on the card itself, freeing up your CPU to handle other tasks.
Clean and Crisp Audio Clarity
Enhanced audio is only going to sound as good as the components delivering it, and with the AE-7, we're not pulling any punches. The AE-7 features an ESS SABRE-class 9018 DAC that delivers an incredibly clean 127 dB DNR audio stream at up to 32-bit / 384 kHz PCM and DSD64 Playback. If pristine is at the core of your demand, the AE-7 is going to blow past your expectations.
Custom Xamp Discrete Headphone Bi-amplifier
Audiophile and theater-grade components deserve an audiophile-grade headphone amplifier. The AE-7 features our custom Xamp bi-amplified headphone amp in which each earcup gets its own power from the first stage of amplification all the way through delivery.
The end result in your ears is silky smooth audio regardless of how dynamic or demanding the current audio scene may be. For the pro-audio users, the Xamp Discrete Headphone Bi-amp satisfies even the most demanding needs of audiophiles seeking for music in its original form, and appreciate music the way it is intended to be.
It also features an ultra-low 1Ω headphone output impedance that can drive studio-grade headphones of up to 600Ω, including high-end planar-magnetic headphones.
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Host Interface
- PCI Express
- Signal to Noise Ratio (SNR)
- 127 dB
- Maximum Playback Sampling Rate
- 4 Byte 384 kHz
- Maximum Recording Sampling Rate
- 4 Byte 96 kHz
- Sound Channels
- 5.1
- Interfaces/Ports
- Number of Microphone Ports
- 1
- Number of Headphone Ports
- 1
- Number of Audio Line Out
- 3
- Number of Digital Audio Optical Output
- 1
- Physical Characteristics
- Form Factor
- Internal
- Height
- 5"
- Width
- 5.7"
- Thickness
- 0.8"
- Weight (Approximate)
- 7.58 oz
- Miscellaneous
- Package Contents
- AE-7 Sound Board
- Audio Control Module
- Quick Start Leaflet
- Warranty Leaflets
- Country of Origin
- China
