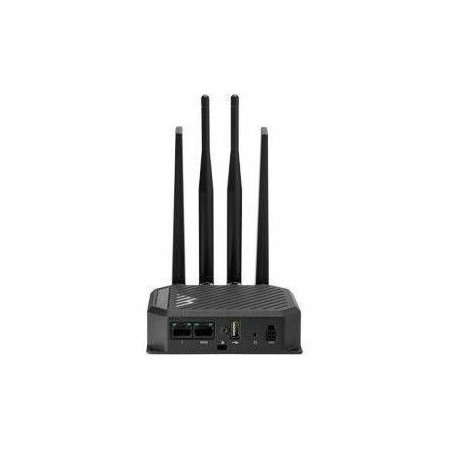

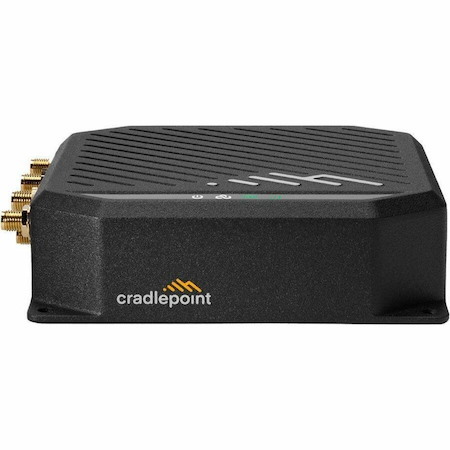

CradlePoint Wi-Fi 6 IEEE 802.11ax 2 SIM Ethernet, Cellular Modem/Wireless Router

  • Part: 1531668
  • Model: TB05-0700C4D-NA
$1,084.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • ERICSSON
    • Manufacturer Website Address
    • http://www.cradlepoint.com
    • Brand Name
    • CradlePoint
    • Product Series
    • S700
    • Product Type
    • Modem/Wireless Router

The Cradlepoint S700 Series Semi-Ruggedized Router for IoT networks is a semi-ruggedized, cloud-managed LTE router, built for light industrial, IoT, and portable applications where security is a foundational requirement. Offering connectivity through LTE plus wired and Wi-Fi options, the S700 accommodates a variety of use cases in high-availability, portable, or fixed uses. The S700 Series is available with IoT NetCloud Service Plans, which provide features optimized for each unique deployment.

Semi-Ruggedized IoT Solution

When coupled with the NetCloud IoT service plan, the S700 router provides a compact, semi-ruggedized 4G LTE router solution for connecting and protecting IoT devices at scale. With an IP30-rated aluminum housing built to withstand vibration and temperature extremes and designed for DIN rail mounting, the S700 is ideal for use in light industrial applications such as oil and gas monitoring or in portable or fixed applications such as surveillance cameras, digital signs, and parallel networking. With an extensive list of features, it can be confidently deployed in the field, in buildings, or in embedded systems to deliver complete visibility, security, and control of connected devices anywhere.

Advanced, Cloud-Managed IoT Solution

? For organizations requiring robust connectivity for IoT networks - with installed routers numbering from hundreds to many thousands - Cradlepoint's NetCloud Service for IoT with the S700 router provides a comprehensive cloud managed network solution. When coupled with advanced IoT features, it provides troubleshooting and diagnostics with in-band and Out-of-Band Management, extensive analytics and insights, and extensibility and integrations such as Microsoft Azure IoT Central. Cradlepoint's NetCloud-managed IoT endpoints can be rapidly deployed and easily scaled to accommodate the diverse requirements of organizations.

  • Technical Information
    • Wi-Fi Generation
    • Wi-Fi 6
    • Network Band
    • Dual Band
    • MU-MIMO Technology
    • Yes
    • High Availability Supported
    • Yes
    • Processor Core
    • Dual-core (2 Core)
    • Standard Memory
    • 512 MB
  • Wireless Specifications
    • Broadband Transmission Technology
    • Ethernet
    • Cellular
    • Wireless LAN Standard
    • IEEE 802.11ax
    • ISM Band
    • Yes
    • UNII Band
    • Yes
    • ISM Maximum Frequency
    • 2.40 GHz
    • UNII Maximum Frequency
    • 5 GHz
    • Cellular Generation
    • 4G
    • Cellular Network Supported
    • LTE 600
    • LTE 700
    • LTE 850
    • LTE 1700
    • LTE 1900
    • Cellular Data Connectivity Technology
    • DC-HSPA+
    • HSPA+
    • LTE
    • UMTS
    • WCDMA
  • Interfaces/Ports
    • Total Number of Network Ports
    • 2
    • USB
    • Yes
    • Number of Broadband (RJ-45) Ports
    • 2
    • USB Standard
    • USB 2.0 Type A
  • Network & Communication
    • Ethernet Technology
    • Gigabit Ethernet
    • Multi-SIM Supported
    • Yes
    • Number of SIM Card Supported
    • 2
    • SIM Size Supported
    • Nano
  • Storage
    • Flash Memory Capacity
    • 8 GB
  • Physical Characteristics
    • Product Material
    • Aluminum
    • Form Factor
    • Desktop
    • Height
    • 1.3"
    • Width
    • 4.8"
    • Depth
    • 4.6"
    • Weight (Approximate)
    • 1.14 lb
  • Miscellaneous
    • Certifications & Standards
      • CB
      • CUL
      • EN 61373 Category 2
      • EN 62368-1
      • IEC/EN 61373 Category 1 Class B
      • IP30
      • ISO 7637-2
      • MIL-STD 810H 514.8
      • MIL-STD 810H 516.8
      • SAE J1455
      • UL
      • CB
      • FIPS 140-3 Level 1
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    • Waste Electrical and Electronic Equipment Directive (WEEE)
