- General Information
- Manufacturer
- Black Box Corporation
- Manufacturer Website Address
- http://www.blackbox.com
- Brand Name
- Black Box
- Product Type

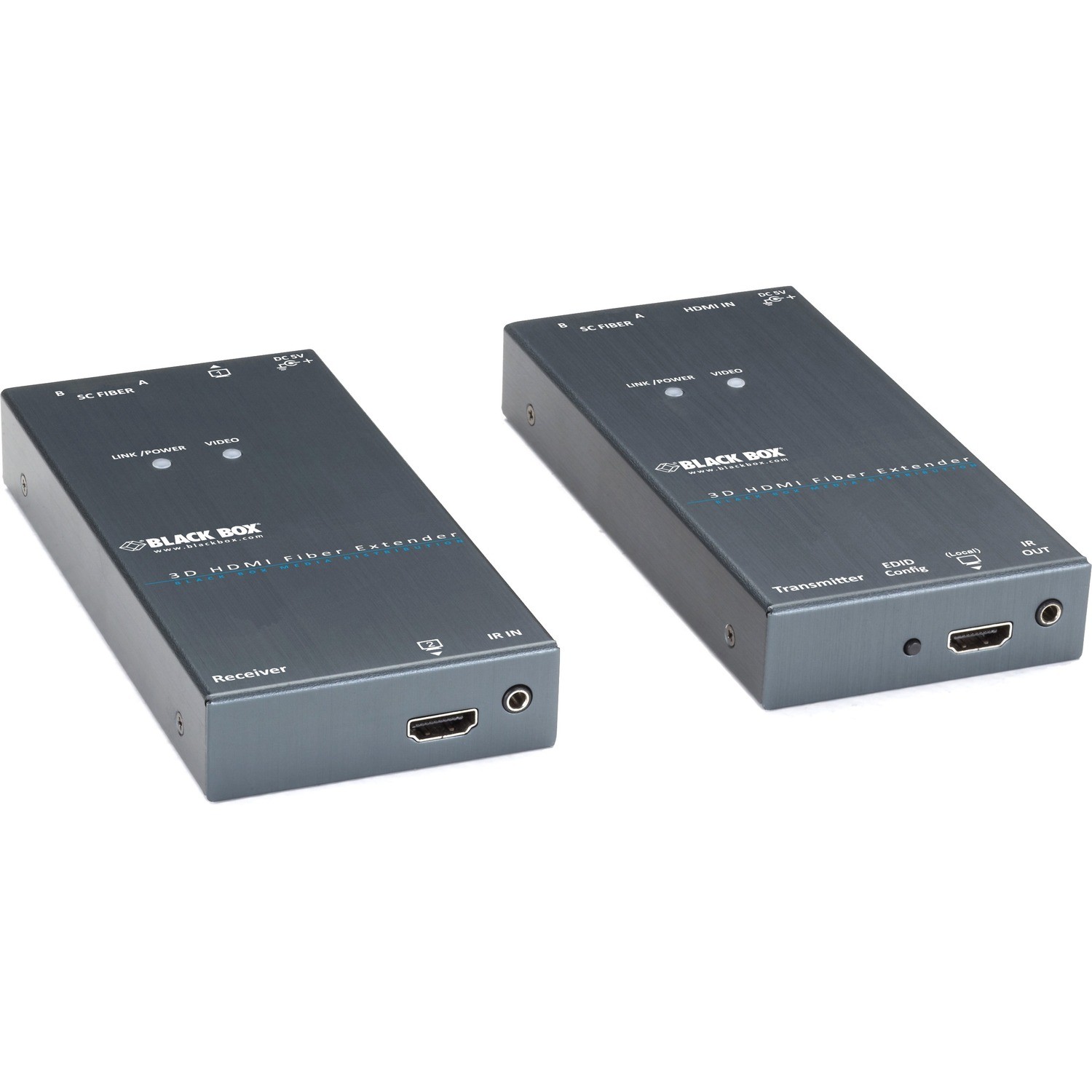

- Video Extender Transmitter/Receiver
Extends lossless HDMI with 3D support.
- Extend a video signal up to 1.6 kilometers (1 mi.) at 1080i or 0.8 kilometers (0.5 mi.) at 1080p via multimode fiber cable.
- Pure digital transmission with zero compression.
- Fully compliant with HDMI 1.3b specification.
- HDCP compliant and Blu-ray ready.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 5249.34 ft
- Video
- Graphics Modes
- WUXGA
- Maximum Video Resolution
- 1920 x 1200
- Interfaces/Ports
- HDMI In
- Yes
- HDMI Out
- Yes
- Number of HDMI Inputs
- 2
- Number of HDMI Outputs
- 2
- Number of SC Ports
- 2
- Media & Performance
- Media Type Supported
- Optical Fiber
- Power Description
- Input Voltage
- 110 V AC
- 22 V AC
- Physical Characteristics
- Transmitter Height
- 1"
- Transmitter Width
- 6.10"
- Transmitter Depth
- 3"
- Transmitter Weight (Approximate)
- 11.20 oz
- Miscellaneous
- Package Contents
- 1 x HDMI Extender Local Unit
- 1 x HDMI Extender Remote Unit
- 2 x Power Supplies With Snap-On Power Plug
- 1 x 2-m (6.5-ft.) SC/SC Duplex 50-/125-Micron Patch Cord
- 2 x Sets Of (4) Footpads
- 10 x Small Screws (hardware For Magnets)
- 8 x Small Magnets For Mounting
- Certifications & Standards
- CE
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
