- General Information
- Manufacturer
- Axis Communications
- Manufacturer Website Address
- http://www.axis.com
- Brand Name
- AXIS
- Packaged Quantity
- 1
- Product Type
- CCTV Wireless Installation Device
- Multiple camera discovery, including ONVIF
- Wireless connection to handheld devices
- Native app for installation of Axis cameras
- Powerful battery
- Support for PoE+
Easy and intuitive to use

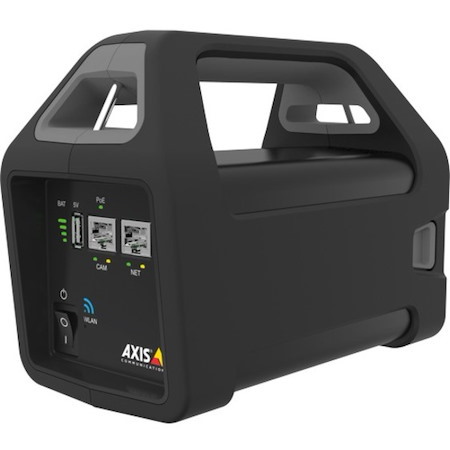

AXIS T8415 Wireless Installation Tool is an easy-to-use tool that help installers during the installation of IP cameras. The tool includes a free-of-charge application which is compatible with Android and iOS devices. The app is called AXIS Wireless Installation Tool, downloadable from App Store or Google Play.
The live video feed is displayed on the smartphone via a direct Wi-Fi connection. From the live video it is easy to access basic key features to set the camera's optimal viewing angle, focus and IP settings.
AXIS T8415 powers up the network camera directly from its powerful battery and offers an integrated Wi-Fi access to connect with the smartphone for easy and quick view of camera Live view.
Wireless connection
AXIS T8415 powers up the network camera via Power over Ethernet, thanks to its powerful battery and offers an integrated Wi-Fi access point to connect with the handheld device for easy and quick view of the camera Live view and basic setings.
Through a USB port on AXIS T8415, the handheld device is always charged and ready to be used.
Install more cameras
Be more productive when installing cameras thanks to its quick and easy features together with a powerful battery that last the whole day.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Device Function
- IP Camera Testing
- Interfaces/Ports
- HDMI
- No
- DVI
- No
- VGA
- No
- USB
- Yes
- Serial Port
- No
- Serial V.35 Interface
- No
- Audio Line Out
- No
- PoE (RJ-45) Port
- Yes
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 2
- Wireless Specifications
- Wireless LAN
- Yes
- Media & Performance
- Media Type Supported
- Twisted Pair
- Network & Communication
- Network Standard
- 10/100Base-TX
- Ethernet Technology
- Fast Ethernet
- Battery Information
- Number of Batteries Supported
- 1
- Battery Size Supported
- 12V
- Battery Chemistry
- Lead Acid
- Power Description
- Input Voltage
- 12 V DC
- Physical Characteristics
- Height
- 5.9"
- Width
- 3.9"
- Depth
- 8.1"
- Weight (Approximate)
- 4.85 lb
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
