- General Information
- Manufacturer
- Axis Communications
- Manufacturer Website Address
- http://www.axis.com
- Brand Name
- AXIS
- Product Type
- Network Camera

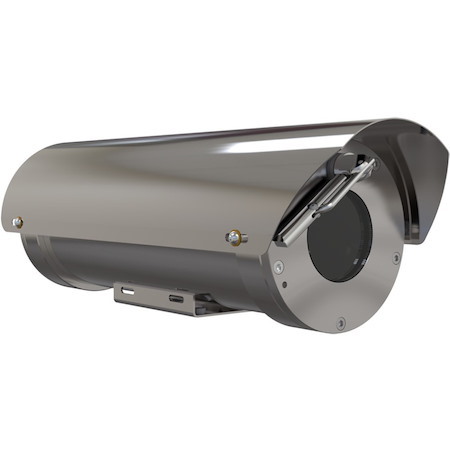

Ideal for onshore, offshore, marine, and heavy industrial applications, XF40 Q1785 comes enclosed in a robust explosion-protected stainless-steel housing and offers outstanding 32x optical zoom.
Tough in extreme environments
XF40-Q1785 is certified for use in Class I//II/III, Division 1 to ensure safe operation in potentially combustible environments. It can withstand temperatures between -50 °C to 60 °C (-58 °F to 140 °F) and includes an integrated long-life wiper-ideal for dirty, grimy environments that are exposed to adverse weather conditions. In addition, electronic image stabilization (EIS) greatly improves video quality in situations where the camera is subject to vibration such as from heavy machinery or gusty winds. Plus, it allows you to install your camera out of reach on high walls, poles, or ceilings with minimum impact on image quality.
Wherever you need it
XF40-Q1785 is designed for 24/7 long-range surveillance and provides high resolution footage from a distance. The camera's 32x optical zoom combined with HDTV 1080p resolution offers superb zoomed-in views of people and objects of interest. This allows you to install the camera far away from the object and still capture all the details. Featuring Axis Lightfinder and Axis Forensic WDR it delivers true colors and great details in challenging light or near darkness. And Axis Zipstream provides exceptional savings on bandwidth and storage requirements without compromising image quality.
And there's more...
XF40-Q1785 includes preinstalled analytics that help you get the most from your surveillance system. It comes with AXIS Guard Suite pre-installed to help reduce false alarm. And thanks to gatekeeper and scene profiles, you can customize your surveillance solution to specific scene requirements. Plus, with barrel distortion correction you can rely on great image quality, even at the edges of the image. Furthermore, like all our explosion-protected cameras, you can use XF40-Q1785 for visual verification of safety information from your sensor system. And it's possible to integrate with other applications such as man-down alarms, hardhat detection, and more.
- Technical Information
- Recording Formats
- Full HD
- HD Recording
- Yes
- Display & Graphics
- Image Sensor Type
- RGB CMOS
- Color Supported
- Color
- Field of View
- Horizontal field of view: 60°-2.3° - Vertical field of view: 39°-1.3°
- Effective Camera Resolution
- 2 Megapixel
- Video
- Video Formats
- H.264
- H.264 (MPEG-4 Part 10/AVC)
- H.264 BP
- H.264 (MP)
- Motion JPEG
- Maximum Video Resolution
- 1920 x 1080
- Maximum Frame Rate
- 60 fps
- Lens
- Lens Type
- Varifocal
- Minimum Focal Length
- 4.30 mm
- Maximum Focal Length
- 137 mm
- Lens Included
- Yes
- Minimum Aperture
- f/4
- Maximum Aperture
- f/1.4
- Optical Zoom
- 32x
- Exposure
- Shortest Shutter Speed
- 1/66500 Second
- Longest Shutter Speed
- 1 Second
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Input Voltage
- 24 V AC
- Physical Characteristics
- Mount Type
- Wall Mount
- Pole Mount
- Bracket Mount
- Form Factor
- Box
- Durability
- Explosion Proof
- Weather Resistant
- Color Family
- Gray
- Product Color
- Stainless Steel
- Weight (Approximate)
- 46.30 lb
- Environmental Conditions
- Minimum Operating Temperature
- -58°F (-50°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Maximum Operating Humidity
- 100%
- Miscellaneous
- Features
- Wiper
- Wide Dynamic Range
- Electronic Image Stabilization
- Defog
- White Balance
- Privacy Masking
- Password Protection
- HTTPS Encryption
- Active Tampering Alarm
- SD Card Local Storage
- Indoor/Outdoor
- Outdoor
- Ingress Protection Rating
- IP66
- IP67
- TAA Compliant
- Yes
