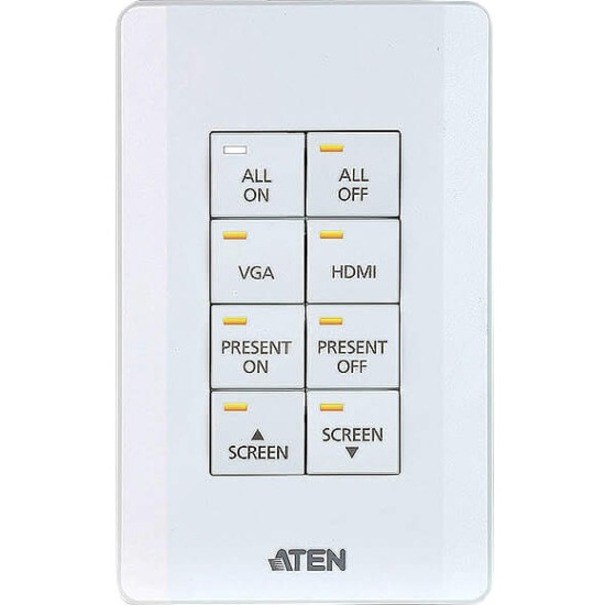

The VK108US is a fully-customizable 8-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind, the one-gang keypad can be laid out in 14 different combinations of 4 to 8 buttons that snap together as easy as Lego's. By connecting to the VK2100/VK1100 Control Box over a LAN, users will find it's effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the button's ready to go, you have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. The VK108US is an affordable solution, perfect to serve as the primary interface in small meeting rooms, or as secondary device control in classrooms and conference centers.
- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com/us/en/
- Brand Name
- ATEN
- Packaged Quantity
- 1
- Product Type
- A/V Control Panel
- Warranty
- Limited Warranty
- 3 Year
- Physical Characteristics
- Product Material
- Plastic
- Form Factor
- Wall Mountable
- Height
- 1.5"
- Width
- 2.8"
- Weight (Approximate)
- 4.59 oz
- Miscellaneous
- Package Contents
- Control System - 8-button Keypad (US, 1 Gang)
- 1 x Button Pack
- 1 x Terminal Block
- 1 x Faceplate
- 1 x User Instructions
- Additional Information
Ethernet:
- 1 x RJ-45 Female, 10/100Base-T
- Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS
- DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
- IP: 192.168.0.60
- Subnet Mask: 255.255.255.0
Switches
- Controller ID 1 x 16-segment Switch
- Keypad ID 1 x 8-segment Switch
Reset Button: 1 x Semi-recessed Pushbutton
Power Consumption:- DC5V:1.25W:6BTU
- DC48V:1.58W:7BTU
- Operating Temperature: 0 - 50°C
- Storage Temperature: -20 - 60°C
- Humidity: 0 - 80% RH, Non-Condensing
Housing: Plastic
Weight: 0.13 kg ( 0.29 lb )
Dimensions:
(L x W x H) 11.63 x 7.06 x 3.89 cm
(4.58 x 2.78 x 1.53 in.)
Faceplate Dimension:
(L x W x H) 11.92 x 7.42 x 0.92 cm
(4.69 x 2.92 x 0.36 in.)
- Application/Usage
- Meeting Room
- Classroom
- Conference Room
- Compatibility
- Aten VK2100 Control System
- Aten VK1100 Control System
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
