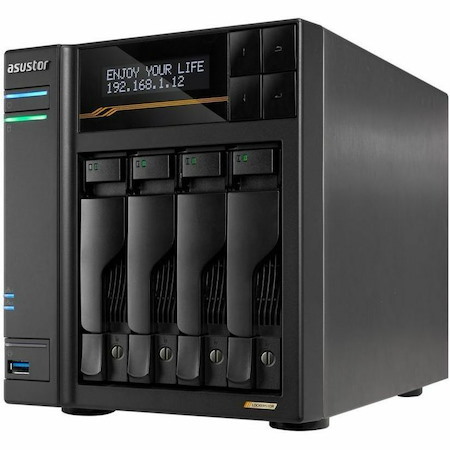

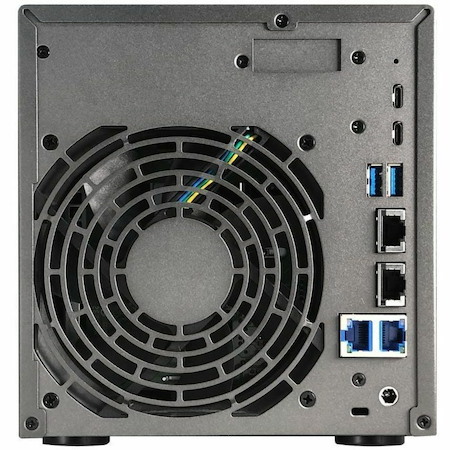

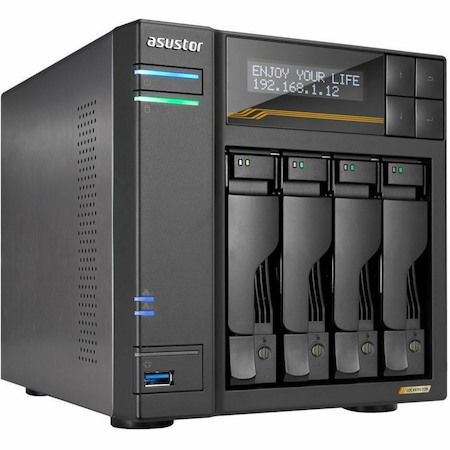

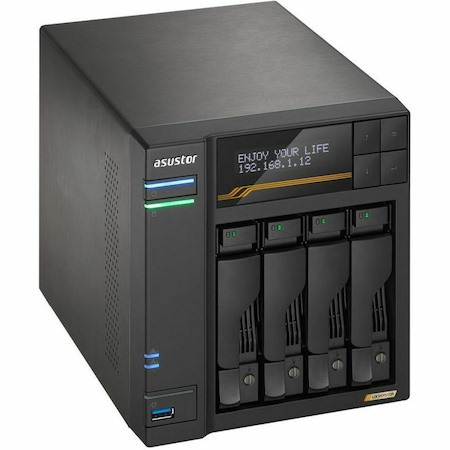

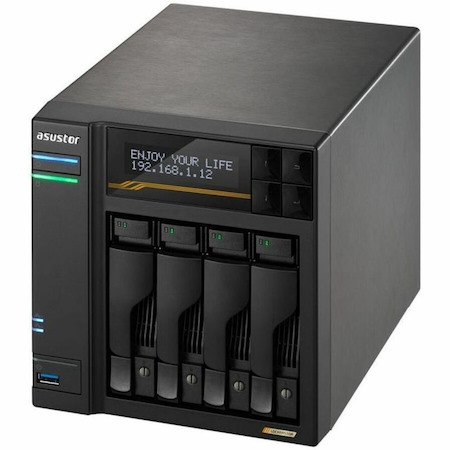

Asustor Lockerstor 4 Gen3 AS6804T, 4 Bay NAS, AMD Ryzen Quad-Core 2.3 GHz, 16GB RAM ECC DDR5, 4 M.2 NVMe Slots, Dual 5GbE and Dual 10GbE Port, USB 4.0 Type-C, Network Attached Storage (Diskless)

  • Part: 2457175
  • Model: AS6804T
$1,729.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • ASUSTOR
    • Manufacturer Website Address
    • http://www.asustor.com
    • Brand Name
    • ASUSTOR
    • Product Line
    • LOCKERSTOR 4 Gen3
    • Packaged Quantity
    • 1
    • Product Type
    • SAN/NAS Storage System

Ryzen Up to the Challenge!

AMD's Ryzen Embedded SoCs are so efficient, that they bring both energy savings and uncompromised desktop-class performance. Four cores at up to 3.8 GHz helps you transfer, store, create and more at unbelievable efficiency.

Server-grade ECC memory

ECC memory is memory usually used in servers for detection and correction of the most common kinds of data corruption. This can help prevent data loss due to electromagnetic interference or crashes, making the NAS the Lockerstor 16R pro our most stable NAS ever.

Speeds keep Ryzen and Ryzen!

The Lockerstor Gen3 series is ASUSTOR's fastest NAS ever! The combination of AMD's Ryzen Embedded SoC, M.2 SSDs using PCIe 4.0, USB4, and dual 10GbE to ensure everything you want to do with your NAS is nothing short of extremely fast. With four M.2 slots for NVMe SSDs and up to ten bays for HDDs, the Lockerstor Gen3 series ensure that you get the best of both speed and capacity.

PCI Express 4.0 Brings Doubled Performance

The Lockerstor Gen3 series is equipped with four M.2 slots for NVMe SSDs to accelerate tasks that require high random IO performance to save unbelievable amounts of time in applications that can take advantage of SSDs, such as content creation. Each M.2 slot for NVMe SSDs is tool-free for easier installation while the cooling vents ensure SSDs run at optimum performance.

USB4 is More Than Just Storage

The Lockerstor Gen3 is equipped with two high-speed USB4 ports, offering ultra-fast speeds of up to 40 Gbps. The USB4 ports are compatible with Thunderbolt 3/4 devices, allowing you to transfer, store, archive, and back up faster than ever.

When connecting two ASUSTOR NAS units using the USB4 ports, fast data transfers, synchronizations, and backups can be achieved without using the network ports. Paired with features like DataSync Center and SMB Backup, this can help significantly reduce back up time.

The Hottest NAS Ever is also the Coolest

With all these features packed into a small footprint, the Lockerstor Gen3 series and the installed AMD Ryzen Embedded SoCs require the best cooling solution. The heat dissipation solution in the Lockerstor Gen3 uses heat pipes and fins to dissipate waste heat from the CPU, enabling the Lockerstor Gen3 to chew through virtually any storage task you throw at it.

Exclusive MyArchive Cold Backup Technology | Unlimited Capacity Expansion

MyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup and share terabytes of content.

Protected From the Inside and Out

Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM's various backup tools help protect ransomware even better.

Network Attack Protection

  • Firewall
  • ADM Defender
  • Cloud Backup Center offsite backups

Secure Data Transmission

  • VPN connection
  • SSL certificate connection
  • Automatic logout

Internal Data

  • AES-256 folder encryption
  • Antivirus software
  • MyArchive

Access Control

  • File/folder/app isolation
  • 2-Step Verification
  • Wake-on-LAN (WOL)
  • Wake-on-WAN (WAN)
  • Warranty
    • Limited Warranty
    • 3 Year

  • Storage
    • Number of Hard Drives Supported
    • 4
    • Number of Hard Drives Installed
    • 0
    • Number of Solid State Drive Supported
    • 4
    • Number of Solid State Drive Installed
    • 0
    • Flash Memory Capacity
    • 8 GB
  • Processor & Chipset
    • Processor Manufacturer
    • AMD
    • Processor Type
    • Ryzen Embedded
    • Processor Model
    • V3C14
    • Processor Core
    • Quad-core (4 Core)
    • Processor Speed
    • 2.30 GHz
  • Memory
    • Standard Memory
    • 16 GB
    • Memory Technology
    • DDR5 SDRAM
  • Network & Communication
    • Ethernet Technology
    • 10 Gigabit Ethernet
    • 5 Gigabit Ethernet
  • I/O Expansions
    • Number of Total Expansion Bays
    • 4
    • Number of 2.5"/3.5" Bays
    • 4
    • Total Number of Expansion Slots
    • 1.0
    • Expansion Slot Type
    • PCI Express 4.0 x4
  • Controllers
    • Controller Type
    • Serial ATA/600
    • RAID Supported
    • Yes
    • RAID Levels
    • 0, 1, 5, 6, 10, JBOD
  • Interfaces/Ports
    • Drive Interface
    • Serial ATA/600
    • Total Number of USB Ports
    • 5
    • Number of USB 3.2 Gen 2 Ports
    • 3
    • Number of USB4 Ports
    • 2
    • Network (RJ-45)
    • Yes
    • Number of Network (RJ-45) Ports
    • 4
  • Software
    • Operating System
    • ADM 5.0
  • Management & Protocols
    • Protocols
      • CIFS/SMB
      • IPv6
      • SMB 3.0
      TCP/IP
    • HTTPS
    • LDAP
    • L2TP
    • SFTP
    • UDP
    • SSH
    • CHAP
    • FTPS
    • AFP
    • RTSP
    • FTP
    • SMB 2.0
    • IPv4
    • PAP
    • WEBDAV
    • SSL
    • iSCSI
    • SNMP
    • TLS
    • HTTP
    • TFTP
    • NFS
    • UPnP
    • RSync
    • DDNS
  • Power Description
    • Maximum Power Supply Wattage
    • 90 W
  • Physical Characteristics
    • Height
    • 7.3"
    • Width
    • 6.7"
    • Depth
    • 9.1"
    • Form Factor
    • Desktop
    • Weight (Approximate)
    • 7.05 lb
  • Miscellaneous
    • Package Contents
      • LOCKERSTOR 4 Gen3 AS6804T SAN/NAS Storage System
      • Quick Installation Guide
      • 1 x AC Power Cord
      • 1 x AC Power Adapter
      • 4 x 10GbE LAN Cable(Cat 6a)
      • 16 x Flat Head Screw (for 3.5" HDD)
      • 16 x Flat Head Screw (for 2.5" HDD)
