- General Information
- Manufacturer
- ASUSTOR
- Manufacturer Website Address
- http://www.asustor.com
- Brand Name
- ASUSTOR
- Product Line
- Lockerstor 2 Gen2
- Packaged Quantity
- 1
- Product Type
- SAN/NAS Storage System

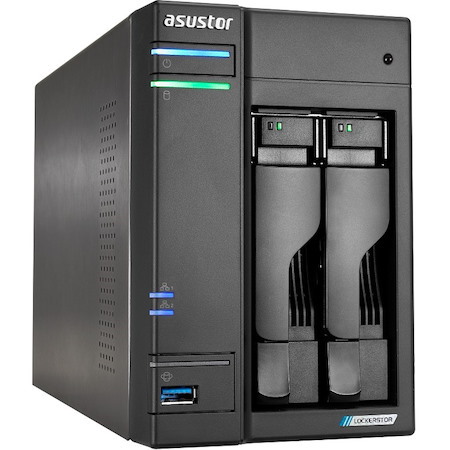

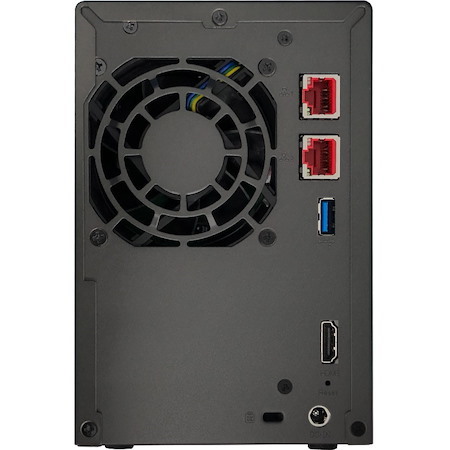

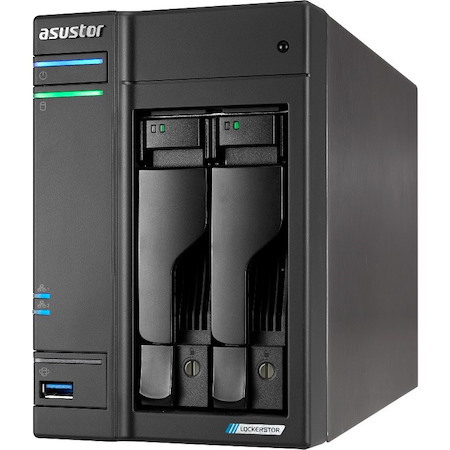

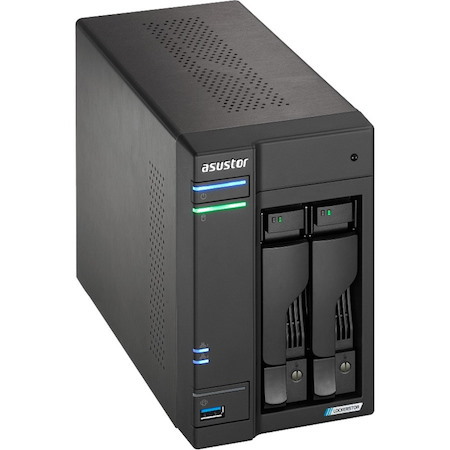

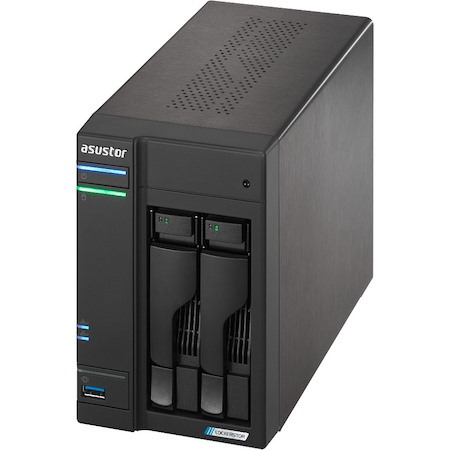

The No-Compromises 2.5GbE NAS | LOCKERSTOR Gen2 Series
Enthusiast-grade NAS with two, four or six bays
The LOCKERSTOR Gen2 series of NAS devices come with the all-new Quad-Core Intel Celeron N5105 CPU featuring Intel 10 nm technology. Intel's Jasper Lake Celeron CPUs bring up to 31% extra performance over the previous generation of Celeron CPUs. The LOCKERSTOR Gen2 is flexible. Install up to four M.2 SSDs or a 10-Gigabit Ethernet card in the available PCI Express slot for maximum performance.
The LOCKERSTOR Gen2 uses DDR4-2933 and super-fast 2.5-Gigabit Ethernet which makes content creation even easier than ever before.
Unleashed Strength
Uses powerful software tools to ensure data is safe and secure
Unleashed Speed
Uses faster hardware for more efficiency
Unleashed Creativity
Maximum creativity without computing constraints
Unleashed Potential
- Supports Premiere Pro & Final Cut Pro
- Easily collaborate with anyone, anywhere.
- Adobe Creative Cloud data backup and version control
- Stream YouTube and/or Twitch videos with rebroadcasting and live recording functionality
CPU
Intel's newest N5105 Quad-Core CPU comes with Intel 10 nm technology and up to 31% increased performance over Gemini Lake SoCs. The N5105 is clocked at 2.0 GHz with a boost of up to 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.
Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.
USB 3.2 Gen 2x1 - A First for ASUSTOR
The Lockerstor Gen2 series now support USB 3.2 Gen 2x1 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen1 at up to 10 Gbps.
Four M.2 Slots
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.
Tool-Free M.2 SSD Installation
Uses latches instead of screws for easier installation.
Also Supports 10-Gigabit Ethernet
The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.
- Warranty
- Limited Warranty
- 3 Year
- Storage
- Number of Hard Drives Supported
- 2
- Number of Hard Drives Installed
- 0
- Number of Solid State Drive Supported
- 2
- Number of Solid State Drive Installed
- 0
- Flash Memory Capacity
- 8 GB
- Processor & Chipset
- Processor Manufacturer
- Intel
- Processor Type
- Celeron
- Processor Model
- N5105
- Processor Core
- Quad-core (4 Core)
- Processor Speed
- 2 GHz
- Memory
- Standard Memory
- 4 GB
- Memory Technology
- DDR4 SDRAM
- Network & Communication
- Ethernet Technology
- 2.5 Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 2
- Number of 2.5"/3.5" Bays
- 2
- Controllers
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0, 1, JBOD
- Interfaces/Ports
- HDMI
- Yes
- Total Number of USB Ports
- 2
- Number of USB 3.2 Gen 2 Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 2
- Software
- Operating System
- ADM 4.1
- Management & Protocols
- Protocols
- IMAP
- IPSec
- TCP/IP
- SMTP
- HTTPS
- LDAP
- L2TP
- SFTP
- UDP
- SSH
- CHAP
- FTPS
- AFP
- RTSP
- FTP
- SMB 2.0
- IPv4
- PAP
- WEBDAV
- SSL
- iSCSI
- SNMP
- TLS
- HTTP
- TFTP
- NFS
- UPnP
- RSync
- POP3
- DDNS
- CIFS/SMB
- IPv6
- PPTP
- SMB 3.0
- Power Description
- Maximum Power Supply Wattage
- 65 W
- Physical Characteristics
- Height
- 6.4"
- Width
- 4.3"
- Depth
- 9.1"
- Form Factor
- Desktop
- Weight (Approximate)
- 4.41 lb
- Miscellaneous
- Package Contents
- Lockerstor 2 Gen2 AS6702T SAN/NAS Storage System
- Quick Installation Guide
- 1 x AC Power Cord
- 1 x AC Power Adapter
- 2 x RJ-45 LAN Cable(Cat 5e)
- 8 x Flat Head Screw (for 3.5" HDD)
- 8 x Flat Head Screw (for 2.5" HDD)
