- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Type
- Step Down Transformer

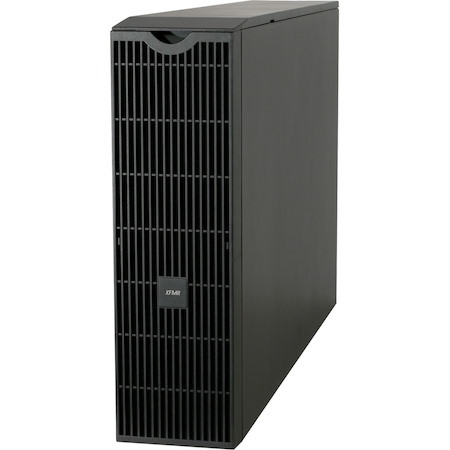

The Step-Down Transformer converts high voltage (208 or 200 VAC) output into low voltage (120 or 100 VAC) output for powering low voltage AC equipment.
- Warranty
- Limited Warranty
- 2 Year
- Additional Warranty Information
- 2 years repair or replace
- Technical Information
- Power Rating
- 4800 VA
- Input Receptacle Type
- NEMA L6-30P
- Output Receptacle Type
- NEMA 5-20R
- NEMA L14-30R
- NEMA L6-20R
- NEMA L6-30R
- Output Receptacle Detail
- 8 x NEMA 5-20R
- 1 x NEMA L14-30R
- 2 x NEMA L6-20R
- 1 x NEMA L6-30R
- Cord Length
- 36"
- Power Description
- Input Voltage
- 208 V
- 240 V
- Output Voltage
- 120 V
- 208 V AC
- Maximum Line Current
- 30 A
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack-mountable
- Mounting Preference
- Lower
- Rack Height
- 3U
- Rack Width
- 19"
- Height
- 17"
- Width
- 5.1"
- Depth
- 26"
- Weight (Approximate)
- 125.27 lb
- Miscellaneous
- Additional Information
- Units per Pallet: 6
- Heavy Duty Design
- Package Contents
- 4.8K VA Isolated Step-Down Transformer
- Installation guide
- User manual
- Compatibility
- APC Symmetra Series
- Smart-UPS RT 208V Series
- Certifications & Standards
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Green Premium
- Yes
- Optimized Energy Efficiency
- Yes
- Product Take Back Program
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT003_ROHS_DECLARATION&p_FileName=SURT003KIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=765702&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=765702&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
- WEEE Statement
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
