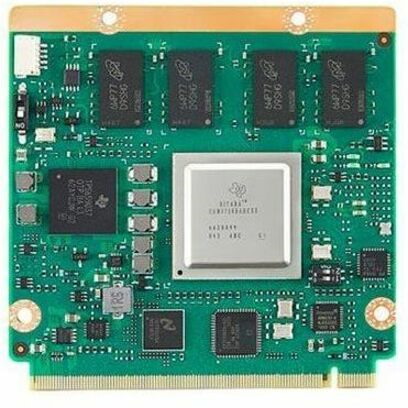

ROM-7510 Qseven Module integrates ARM Cortex-A15 TI AM5728 high performance SoC and I/O solution chips to be Linux support ready. TI AM5728 is provided by dual-core ARM Cortex-A15 RISC CPUs with Neon™ extension, and two TI C66x VLIW loating-point DSP cores. The ARM allows developers to keep control functions separate from other algorithms programmed on the DSPs and coprocessors, thus reducing the complexity of the system software.
ROM-7510 has Advantech ROM-DB7502 Evaluation Carrier Board for easy integration and design reference; we also offer referenced schematics and layout checklists for carrier board development. Additionally, Linux BSP, test utilities, HW design utilities and reference codes are ready for application development and device integration.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- Single Board Computer
- Processor & Chipset
- Processor Type
- Cortex A15
- Processor Core
- Dual-core (2 Core)
- Processor Speed
- 1.50 GHz
- Chipset Manufacturer
- Texas Instruments
- Chipset Model
- AM5728
- Memory
- Standard Memory
- 2 GB
- Memory Technology
- DDR3 SDRAM
- Storage
- Flash Memory Capacity
- 8 GB
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- HDMI
- Yes
- Total Number of USB Ports
- 6
- Number of USB 2.0 Ports
- 5
- Number of USB 3.0 Ports
- 1
- Network (RJ-45)
- Yes
- Software
- Operating System
- Linux
- Power Description
- Maximum Power Consumption
- 10 W
- Physical Characteristics
- Form Factor
- Module
- Width
- 2.8"
- Depth
- 2.8"
- Miscellaneous
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
