- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- Desktop Motherboard
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Q370
- Total Processor Supported
- 1
- Processor Socket
- Socket H4 LGA-1151
- Processor Supported
- Core i3
- Core i5
- Core i7
- Celeron
- Pentium
- Memory
- Number of Memory Slots
- 2
- Memory Form Factor
- SoDIMM
- Maximum Memory Supported
- 32 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 2666 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 1.0
- Total Number of PCI Express Slots
- 1
- Number of PCI Express x16 Slots
- 1
- Interfaces/Ports
- Total Number of USB Ports
- 8
- Number of USB 3.0 Ports
- 2
- Number of USB 3.1 Ports
- 6
- HDMI
- Yes
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 2
- Onboard Interfaces
- Number of SATA Interfaces
- 3
- Number of M.2 Interfaces
- 2
- Total Number of Onboard USB Ports
- 2
- Number of Onboard USB 3.0 Ports
- 2
- Physical Characteristics
- Form Factor
- Mini ITX
- Width
- 6.7"
- Depth
- 6.7"
- Miscellaneous
- Package Contents

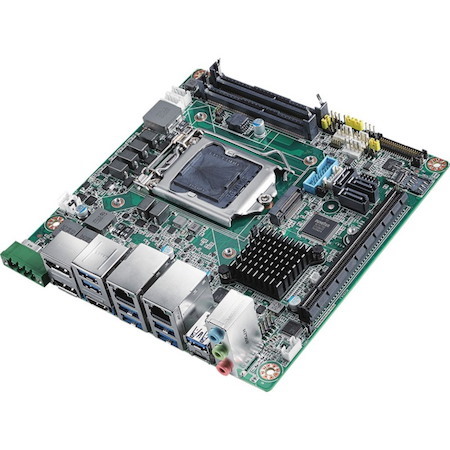

- AIMB-276 Desktop Motherboard
- 1 x SATA HDD Cable
- 1 x SATA Power Cable (1 port, 25cm)
- 2 x 1-to-1 Serial Port Cable 17CM
- 1 x I/O Port Bracket
- 1 x Startup Manual
- Brand Compatibility
- Intel
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
