- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Packaged Quantity
- 1
- Product Type
- Barebone System
ARK-3000 Series: High Performance Fanless Embedded Computers
ARK-3000 series features high performance computing Intel Core i and Xeon, mini PCIe expansion cards, multi IO expansions, and wide temperature range, being ideal for automation system, machine automation, factory automation, IoT platforms, and cabinet integration.
- Processor
- Number of Processors Supported
- 1
- Processor Socket
- Socket H4 LGA-1151
- Processor Supported
- Xeon
- Core i3
- Core i5
- Core i7
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C236
- Memory
- Maximum Memory Supported
- 32 GB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-2133/PC4-17000
- Total Number of Memory Slots
- 2
- Controllers
- Controller Type
- Serial ATA/600
- Display & Graphics
- Graphics Controller Model
- HD Graphics 630
- Graphics Memory Technology
- DDR4 SDRAM
- Graphics Memory Accessibility
- Shared
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 2
- Total Number of Expansion Slots
- 2
- Interfaces/Ports
- HDMI
- Yes
- Total Number of USB Ports
- 8
- Number of USB 3.0 Ports
- 8
- Number of VGA Ports
- 1
- Operating System
- Operating System Supported
- Windows 10
- Windows 7
- Linux
- Physical Characteristics
- Form Factor
- Desktop
- Height
- 8.1"
- Width
- 4.1"
- Depth
- 9.1"
- Weight (Approximate)
- 11.24 lb
- Miscellaneous
- Package Contents

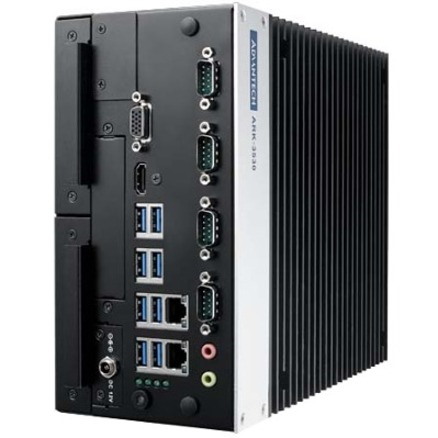

- ARK-3530L Barebone System
- User Manual (Simplified Chinese)
- China RoHS
- Desk Mounting Kit
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- China Restriction of Hazardous Substances (China RoHS)
- Country of Origin
- China
