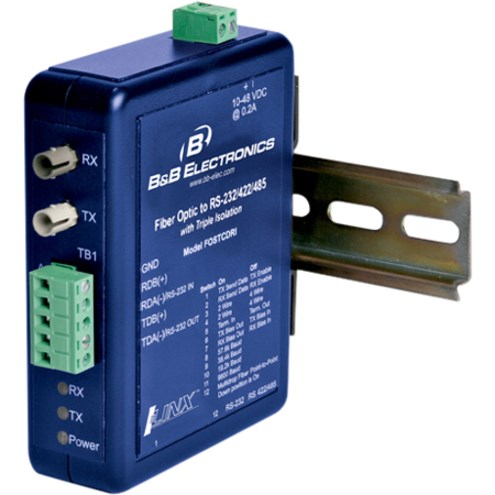

SERIAL TO FIBER OPTIC CONVERTERS
Standards can be mixed and matched so RS-232 devices can be connected to RS-422/485 devices, replacing a converter and isolator. When working with RS-485 signals, B&B Electronics' Automatic Send Data control eliminates the need for driver software. Serial connections are on terminal blocks; multimode fiber side has two ST connectors. Requires external power supply not included.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- B+B SmartWorx
- Packaged Quantity
- 1
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 3
- Network (RJ-45)
- No
- DVI
- No
- USB
- No
- Parallel Port
- No
- Digital Audio
- No
- Digital Audio/Video
- No
- Management Port
- No
- Number of ST Ports
- 2
- Number of Serial Ports
- 1
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Maximum Distance Supported
- 4 km
- Physical Characteristics
- Form Factor
- Rail-mountable
- Panel-mountable
- Height
- 6"
- Width
- 5.5"
- Depth
- 4.5"
- Weight (Approximate)
- 8.80 oz
- Miscellaneous
- Certifications & Standards
- FCC
- CE
- UL Class 1 DIV 2 Groups A, B, C, D
- E222870 (HAZLOC E245458)
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- United States
