- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- Data Transfer Adapter

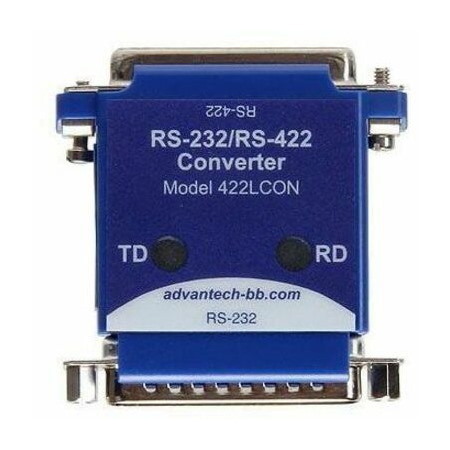

Mode 422LCON, non-isolated RS-232 to RS-422 converter, converts unbalanced RS-232 signals to balanced RS-422 signals. The RS-422 Standard uses a balanced voltage digital interface to allow communications of 90K bits per second on cable lengths of 1200 meters (4000 ft). Ten receivers can be connected to any one driver for use in multi-drop systems. The RS-232 port is a DB25 male connector with pins 2 (TD input) and 3 (RD output) supported. Protective Ground (pin 1) and Signal Ground (pin 7) are also connected. The RS-422 port is a DB25 female connector with Send Data outputs on pins 2 and 14, and Receive Data inputs on pins 5 and 17. Protective Ground (pin 1) and Signal Ground (pin 7) are connected through to the RS-232 connector. LEDs indicate Transmit Data and Receive Data. An external power supply is required (not included, sold separately).
- Technical Information
- Adapter Type
- Serial
- Connector Type on First End
- DB-25 RS-232 Serial - Male
- Connector Gender on First End
- Male
- Connector on First End Details
- 1 x DB-25 RS-232 Serial Male
- Connector Type on Second End
- DB-25 RS-422 Serial
- Connector Gender on Second End
- Female
- Connector on Second End Details
- 1 x DB-25 RS-422 Serial Female
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
