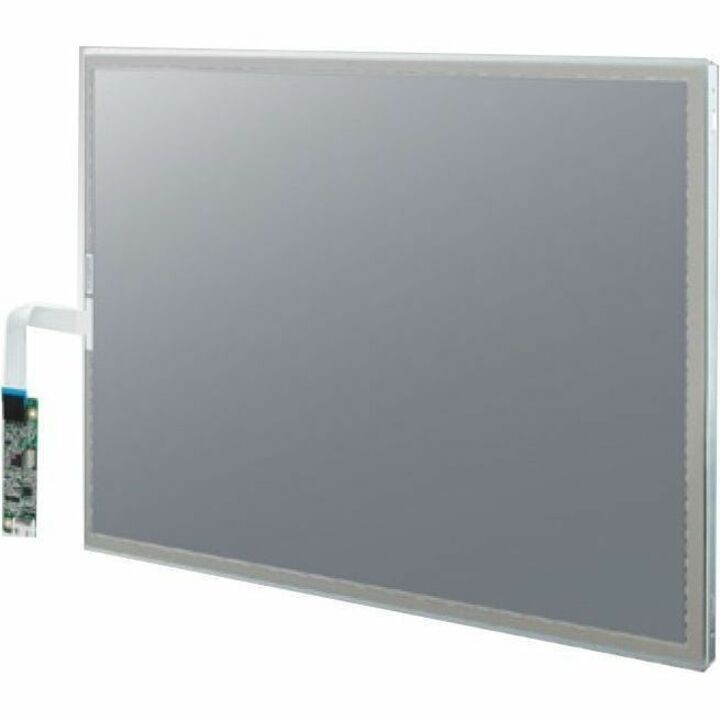

The Advantech IDK-121R/1112R series comes with a 12.1" industrial grade LCD display with 5-wire resistive touch. The series is also available with flexible options for LCD screens enhanced treatment such as Anti-Reflection surface treatment and optical bonding solution. IDK-121R/1112R series supports 5-wire resistive touch with low power. IDK-121R/1112R series is ideal for embedded applications which customers have maximum flexibility for mechanical design.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- Industrial Display Kit
- Technical Information
- Connectivity Technology
- Wired
- Recommended Usage
- Display
- Connector Type
- USB
- Power Description
- Input Voltage
- 12 V
- 3.3 V
- Environmental Conditions
- Minimum Operating Temperature
- -4°F (-20°C)
- Maximum Operating Temperature
- 158°F (70°C)
- Minimum Storage Temperature
- -22°F (-30°C)
- Maximum Storage Temperature
- 176°F (80°C)
- Physical Characteristics
- Dimensions
LCD Panel:
Screen Size: 12.1"
Dimensions (W x H x D): 260.5 x 204 x 8.4 mm
- Weight (Approximate)
LCD Panel:
Weight: 490 g
- Miscellaneous
- Package Contents
- 1 x 5-Wire USB Touch Controller
- 1x USB Touch Cable 5P-2.0/USB-A (M) 180CM
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
